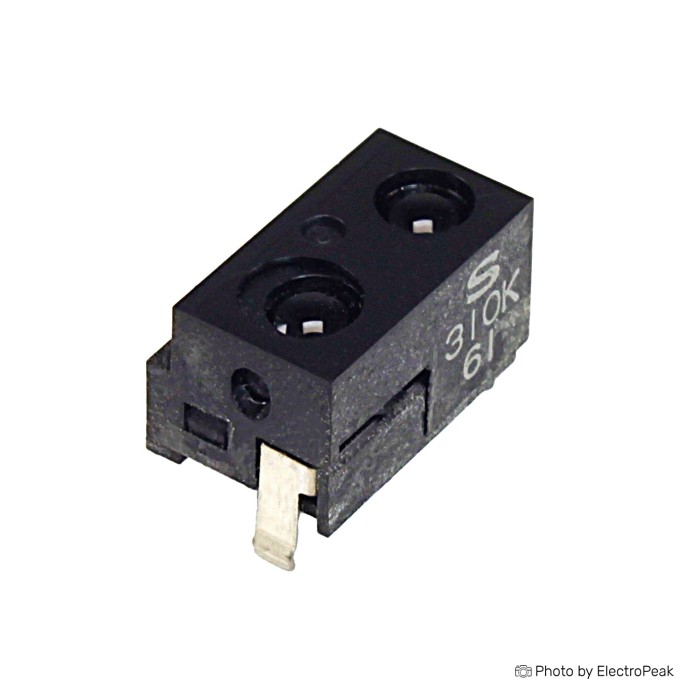

GP2Y0D310K Digital Distance Sensor

GP2Y0D310K Digital Distance Sensor is an infrared distance measuring sensor with a digital output. It combines a PSD, an IRED, and a signal processing circuit in a compact unit. The sensor can also be used as a proximity sensor. It provides a digital high-level output when an object is detected within the specified range. The GP2Y0D310K Digital Distance Sensor is suited for applications that need simple object detection without measuring exact distance.

Features of GP2Y0D310K Digital Distance Sensor

• Digital output type
• Infrared distance sensing
• Proximity detection support
• Compact size

Specifications of GP2Y0D310K Digital Distance Sensor

• Supply voltage: 4.5 V to 5.5 V
• Current: 31 mA to 50 mA
• Maximum distance: 10 cm
• Operating temperature: -10 to +60 °C
• Response time: 64 ms
• Output type: Digital
• Dimensions: 8.7 × 9.6 × 15 mm
• Detecting distance: Typ. 100 mm
• Consumption current: Typ. 31 mA
• Supply voltage: 4.5 to 5.5 V
• High-speed measurement cycle: 8 ms
• Operating Temperature: -10+60C

How to Use GP2Y0D310K Digital Distance Sensor

1. Connect the sensor within the specified supply voltage range.
2. Read the digital output to detect an object within the detection range.

More Info

• Uses a PSD, IRED, and signal processing circuit.
• Provides a digital high-level output when an object is present.
