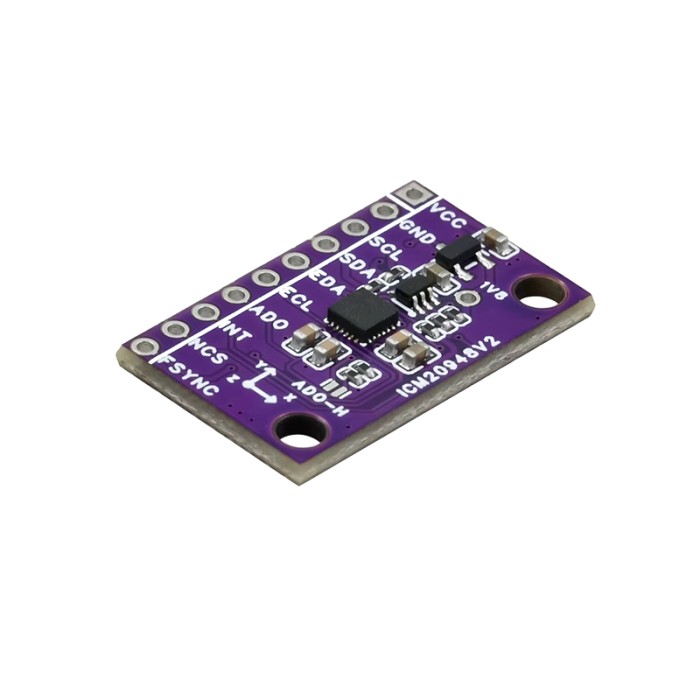

ICM20948V2 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module
$7.9500
In stock
SKU
SEN-18-023
Volume discounts:
- +25 4 % $7.6500
- +50 6 % $7.5000
- +100 8 % $7.3500
- +300 10 % $7.1900
- +500 11 % $7.0400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-89 10DOF IMU LSM303D L3GD20 BMP180 Sensor Module Previous
The ICM20948V2 is a highly integrated 9-axis motion sensor module that includes a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer. It provides 16-bit data output and is equipped with an AD converter for precise motion tracking. Designed with high-quality PCB materials, it supports SPI and I2C communication protocols, making it suitable for a variety of applications, such as robotics, VR, and motion detection systems. With a compact size, this module is ideal for space-constrained projects.
Specifications of ICM20948V2 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module
-
Chip: ICM-20948
-
Communication method: Standard I2C communication protocol (with level conversion)
-
Power supply: 2-5V (internal differential low voltage regulation)
-
9-Axis: Three-Axis Magnetic Field, Three-Axis Acceleration, Three-Axis Gyroscope
-
16-bit AD converter with 16-bit data output
-
Size: 15.5x25.5mm
-
High-quality PCB and welding technology
Datasheet of ICM20948V2 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module
| Interface Type | I2C, SPI |
|---|---|
| Operating Voltage (V) | 2-5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15.5x25.5mm |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Resolution | 16-bit |
| Number of Axes | 9-axis |
| Acceleration Range (g) | ±2g, ±4g, ±8g, ±16g |
| Gyro Range (dps) | ±250dps, ±500dps, ±1000dps, ±2000dps |
| Push Button | No |
| Sensor Type | IMU, AHRS |
| Protocols | I2C, SPI |
