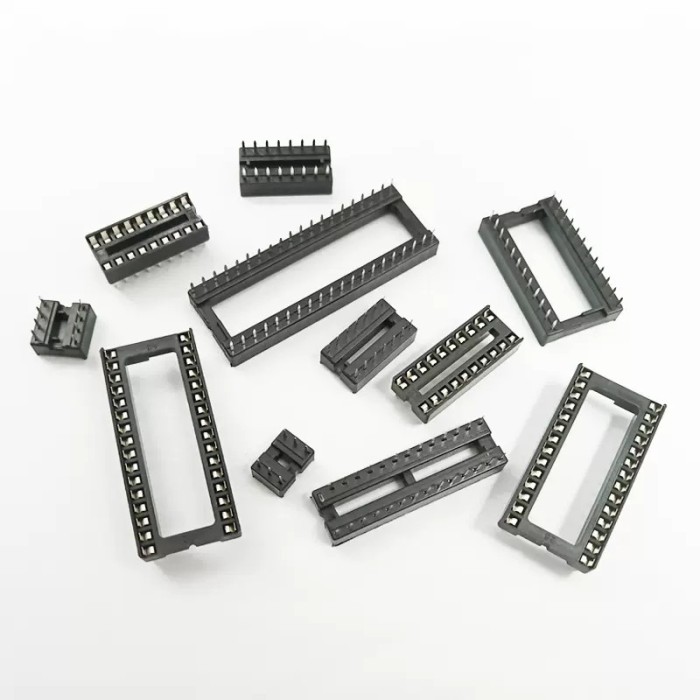

IC Socket For PCB

The IC Socket For PCB is an essential component for mounting integrated circuits on printed circuit boards without soldering the IC directly. It supports easy replacement, testing, and upgrading of ICs. The socket is available in multiple pin configurations and is designed for reliable connections. It also helps prevent heat damage to ICs during soldering. This IC Socket For PCB is suitable for prototyping, development, and repair work.

Features of IC Socket For PCB - 8Pin, 14Pin, 16Pin, 20Pin, 40Pin

• Multiple pin configurations
• Soldierless IC mounting
• Reliable PCB connection
• Low insertion force
• Heat protection for ICs

Specifications of IC Socket For PCB - 8Pin, 14Pin, 16Pin, 20Pin, 40Pin

• Pin Options: 8Pin, 14Pin, 16Pin, 20Pin, 40Pin
• Pin Pitch: 2.54mm
• Material: High-quality thermoplastic with gold-plated or tin-plated contacts
• Insertion Force: Low insertion force for easy IC placement and removal

How to Use IC Socket For PCB - 8Pin, 14Pin, 16Pin, 20Pin, 40Pin

1. Select the required pin option.
2. Mount the socket on the PCB.
3. Insert the IC into the socket.

More Info

• Suitable for prototyping, development, and repair tasks.
• Supports easy IC replacement and testing.
