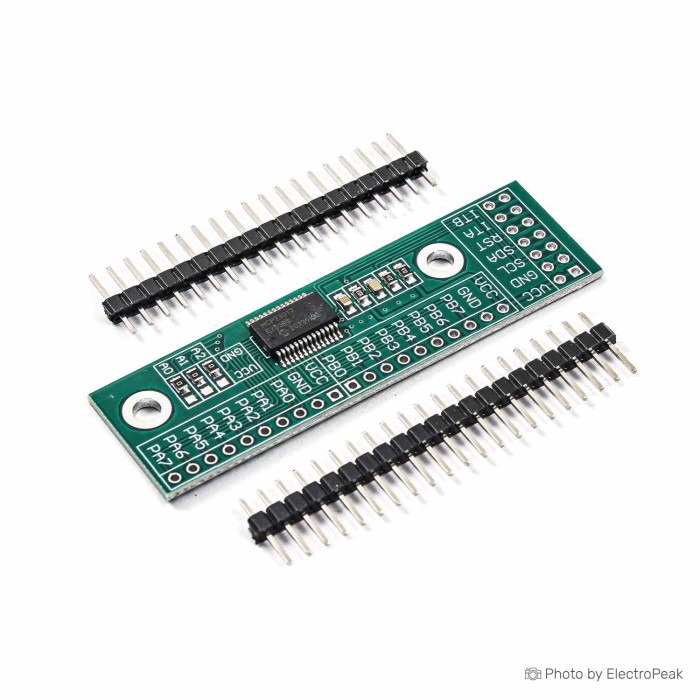

MCP23017-E/SS 16-Channel I/O Expansion Module - I2C Interface

MCP23017-E/SS 16-Channel I/O Expansion Module with I2C interface provides 16-channel IO extension for electronics and robotics projects. It is built in the MCP23017 chip of MicroChip and supports flexible IO configuration. Each IO can be set as input or output, with pull-up resistor support and interrupt enable for input-configured IO. The IO interface has strong driving capacity, and the current can reach 25mA. This high-speed IIC module supports 100KHz, 400KHz, and 1.7MHz operation. Three address pins allow 8 different addresses, and up to 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.

Features of MCP23017-E/SS 16-Channel I/O Expansion Module - I2C Interface

• 16-channel IO extension
• Flexible input or output configuration
• Pull-up resistor support
• Interrupt function for input IO
• Strong driving capacity
• Up to 8 module addresses
• Up to 128 IO extensions

Specifications of MCP23017-E/SS 16-Channel I/O Expansion Module - I2C Interface

• Operating voltage: 3.0V-5.5V
• Drive chip: MCP23017
• Number of IO: 16 (input, output, interruption)
• Drive power supply: 25mA1
• I2C frequency: 100KHz, 400KHz, 1..7MHz
• Working temperature: -40 Celsius -125 Celsius
• Chip level: Industrial grade
• Parallel multiple: Up to 8
• Driver: 51 and Arduino

How to Use MCP23017-E/SS 16-Channel I/O Expansion Module - I2C Interface

1. Connect the module through the I2C interface.
2. Set the address pins to select the required address.
3. Configure each IO as input or output as needed.
4. Enable pull-up resistors or interrupts when required.

More Info

• Based on the MCP23017 chip.
• Supports multiple modules on two IIC buses.
