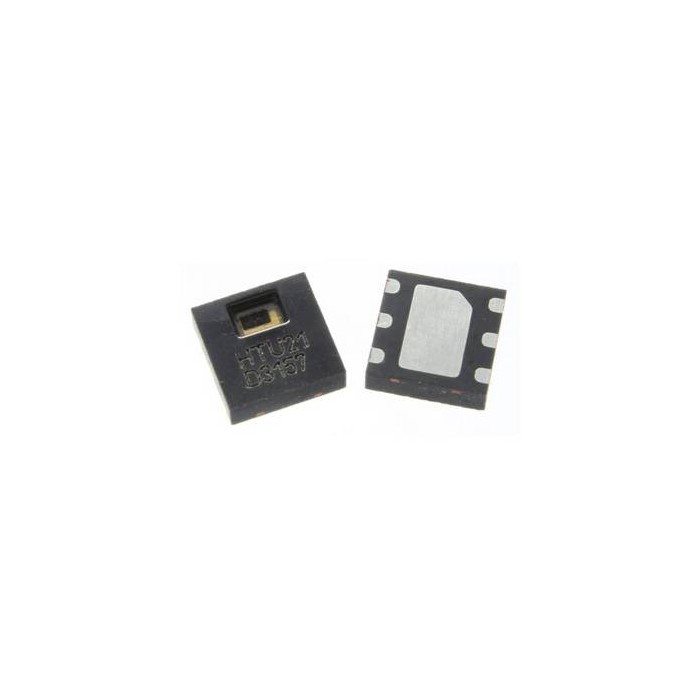

The digital HTU21D OEM sensor is a combination of capacitive humidity sensing element and temperature sensor. Each sensor is individually calibrated, compensated for and tested.
The humidity can be measured within a range of 0 to 100% RH. The temperature sensor is designed for a range of -40 to 125°C.
The outputs for humidity and temperature in I²C format are suitable for further data processing using simple, inexpensive microcontrollers. The resolution of the HTU21D can be programmed (8/12 bits to 12/14 bits RH/T).
As the sensor has a low power consumption it is suitable for battery operation, with information on the current battery level provided.
Secure data transmission is ensured by a CLC or cyclic redundancy check. Humidity and temperature signal response times and the recovery time (following full saturation) are within a range of a few seconds.
Features of HTU21D Digital Temperature and Humidity Sensor:
- Humidity range of 0 to 100% RH
- Temperature range of -40 to +125°C
- Digital I²C interface
- Accuracy of ±2% RH
- Supply voltage of 1.5 to 3.6 V
- Short signal times
- Settable resolution
- Fast recovery time after saturation
- Electrical ID code
- Low power dissipation of 2.7 μW
- Small DFN package
- RoHS and REACH compliant
Extra Notes:
Applications
Car cabins
Household appliances
Medical equipment
Electrical devices
Humidifiers/dehydrators and driers
Air conditioning systems
Weather stations
Security systems
Multimedia devices (smartphones, tablets)
