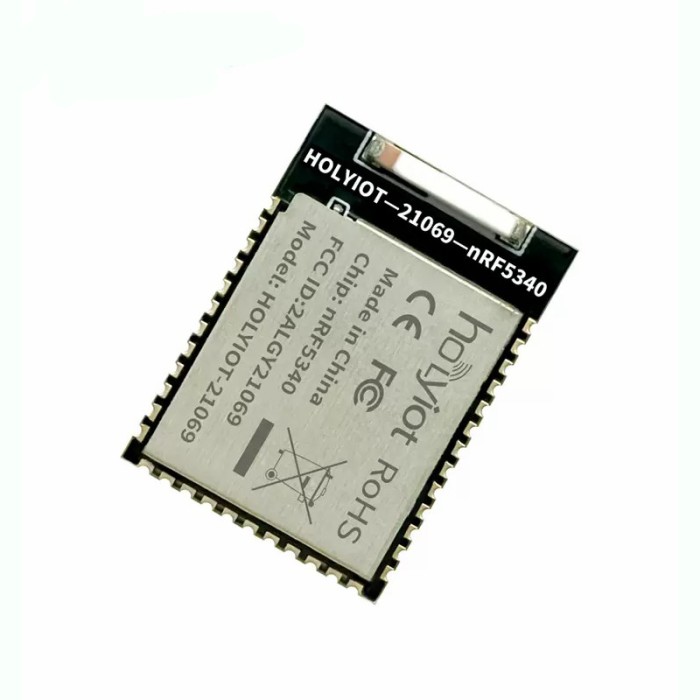

hoLyiot nRF5340 Microcontroller Breakout Board With Ceramic Antenna
$13.9500
In stock
SKU
MIC-04-001
Volume discounts:
- +25 4 % $13.4100
- +50 6 % $13.1300
- +100 8 % $12.8600
- +300 10 % $12.5900
- +500 12 % $12.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NXP LPC845 MCU Development Board Previous
The hoLyiot nRF5340 Microcontroller Breakout Board is a versatile development board featuring the Nordic Semiconductor nRF5340 SoC. It combines a powerful dual-core Arm Cortex-M33 processor with advanced Bluetooth 5.2 and multiple connectivity options, making it ideal for a wide range of IoT applications. The board includes essential peripherals and interfaces for easy prototyping and development, making it suitable for both beginners and experienced developers.
Specifications of hoLyiot nRF5340 Microcontroller Breakout Board With Ceramic Antenna
- Module number: hoLyiot-21069-nRF5340
- Chipset: Nordic nRF5340
- Certifications: FCC & CE & RoHS
- Module size: 19.0x13.5x2.4 mm
- Power supply: 1.7~5.5v
- Storages:
- Application core: 1MB flash and 512kB low leakage RAM
- Network core: 256kB flash and 64kB low leakage RAM
- Frequency: 2400~2483MHz
- Max. Output power: -20dBm~3dBm
- Antenna: Ceramic antenna
- Transmit range: 50m
- Built-in 32.768kHz Crystal Oscillator
- GPIO Quantity: 46
- Operating Temp: -45~85C
- Processor:
- Application core: Arm Cortex-M33 with TrustZone technology
- Network Core: Arm Cortex-M33
- Supported protochols: Bluetooth, USB, NFC, 2.4 GHz radio
Datasheet of hoLyiot nRF5340 Microcontroller Breakout Board
| MCU/SoC | nRF5340 |
|---|---|
| Architecture | Arm Cortex-M33 |
| CPU Cores | Dual-core Arm Cortex-M33 |
| Clock Speed (MHz) | 128 MHz / 64 MHz |
| Flash | 1MB (Application),256kB (Network) |
| SRAM | 512kB (Application),64kB (Network) |
| EEPROM | No |
| External Memory | QSPI, SPI |
| GPIO Pins | 46 |
| SPI interface Pins | 4 |
| I2C interface Pins | 4 |
| UART interface Pins | 4 |
| USB Ports | 1 x USB 2.0 Full Speed |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 8 |
| DAC Channels | No |
| Timers Count | 5 x 32-bit timers, 3 x 24-bit RTCs |
| Operating Voltage (V) | 1.7~5.5V |
| GPIO Voltage (V) | 3.3V |
| Sleep Current (µA) | 0.9 µA (System OFF) |
| Wireless | Bluetooth, 2.4 GHz Radio, NFC |
| Form Factor | 19.0 x 13.5 x 2.4 mm |
| IDE Support | VS Code, nRF Connect SDK, Segger Embedded Studio |
| Input Voltage (V) | 1.7~5.5V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5.2 |
| Operating Temp (°C) | -45 to 85C |
