High Precision Resistive Thin Film Pressure Sensor Module
$1.7600
In stock
SKU
SEN-13-077
Volume discounts:
- +50 4 % $1.6900
- +100 6 % $1.6500
- +300 9 % $1.6100
- +500 10 % $1.5800
- +1000 13 % $1.5400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

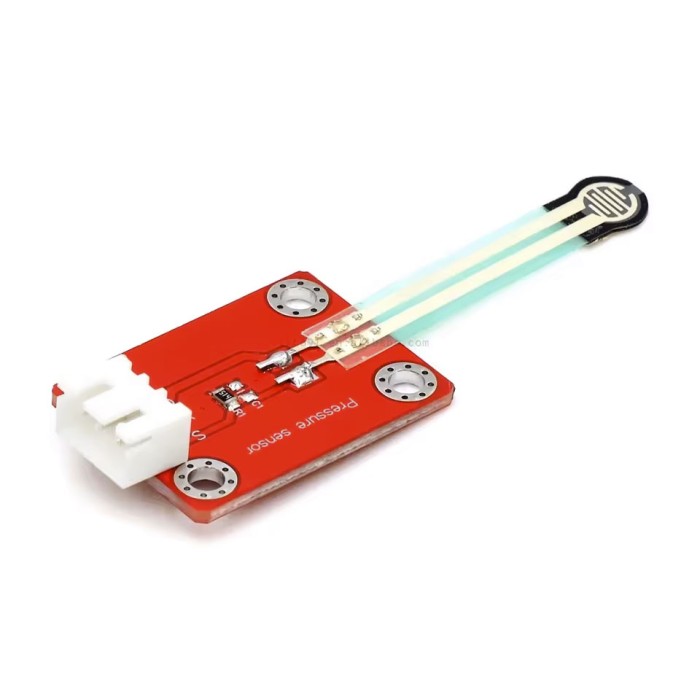

The High Precision Resistive Thin Film Pressure Sensor Module is a reliable and compact sensor designed for accurate pressure measurement. Built with nano pressure-sensitive materials and an ultra-thin waterproof substrate, it delivers fast response and stable performance. The module converts pressure changes into analog electrical signals, making it compatible with Arduino and other microcontrollers. Ideal for smart home, robotics, medical, and consumer electronics applications.
Specifications of High Precision Resistive Thin Film Pressure Sensor Module
- Product Name: Thin Film Pressure Sensor Module
- Working Voltage: DC 3.3V ~ 5V
- Interface: Pin header interface
- Control Signal: Analog signal
- Measuring Range: 5kg
- Response Point: 150g
- Repeatability: ±9.7%
- Consistency: ±10%
- Durability: ≥1 million times
- Initial Resistance: >10MΩ (no load)
- Response Time: ≤1ms
- Recovery Time: ≤15ms
- Operating Temperature: -25°C ~ 85°C
- Operating Humidity: 5% ~ 95%RH
- Dimensions: 67x22x7mm
How to use of High Precision Resistive Thin Film Pressure Sensor Module
- The sensor module works with a built-in 510KΩ resistor. One end of the sensor connects to 5V, the other to the resistor, and finally to GND. The signal pin is connected to the analog port of a microcontroller.
- Resistance calculation formula: *R = (1023 - A0) 510 / A0** (unit: KΩ).
- From resistance value, the applied pressure can be estimated.
- Maximum measurable pressure is 5000g; above this value resistance remains nearly constant.
- Ensure the test object presses on the recessed sensing area. Place a small object within the sensing zone for accurate results if used on flat surfaces.
Datasheet of High Precision Resistive Thin Film Pressure Sensor Module
Datasheet: Not available
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3V ~ 5V |
| Operating Temp (°C) | -25°C ~ 85°C |
| Dimensions (mm) | 67x22x7mm |
| Output Type | Analog Voltage |
| Accuracy | ±9.7% |
| Resolution | 150 g |
| Response Time | ≤1ms |
| Force Range | 5 kg |
| Sensing Principle | Resistive |
| Output Channels | 1 |
| Sensor Type | Force Sensitive Resistor |
