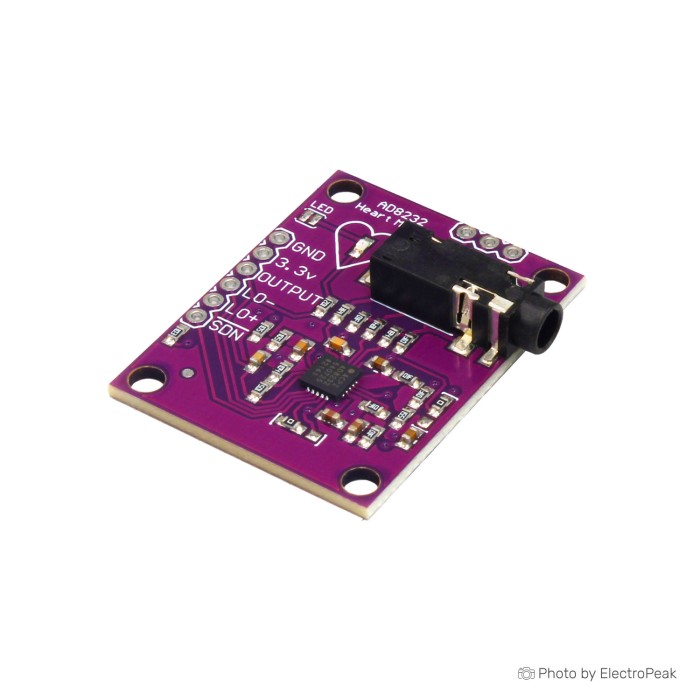

AD8232 ECG Electrocardiogram Heart Pulse Sensor Module
$4.5300
In stock
SKU
SEN-21-011
Volume discounts:
- +25 4 % $4.3500
- +100 6 % $4.2500
- +300 8 % $4.1600
- +500 10 % $4.0700
- +1000 12 % $3.9800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
EMG Muscule Signal Sensor Previous
AD8232 ECG Heart Pulse Sensor Module is an integrated signal conditioning module for ECG and other bioelectrical measurement applications. It is designed to extract, amplify, and filter weak bioelectrical signals with noise generated by motion or remote electrode placement. The module provides an analog output for ECG measurement and heart pulse monitoring. It includes leads-off detection and a shutdown pin for operation control. An LED indicator is provided for status observation. A 3.5mm jack is included for biomedical pad connection. The board breaks out nine connections from the IC for easy wiring to development boards.
Features of AD8232 ECG Heart Pulse Sensor Module - 3.3V
- ECG signal conditioning
- Analog output
- Leads-off detection
- Shutdown pin
- LED indicator
- 3.5mm jack connection
- Nine board connections
Specifications of AD8232 ECG Heart Pulse Sensor Module - 3.3V
- Operating voltage: 3.3V
- Analog output
- Leads-off detection
- Shutdown pin
- LED indicator
- 3.5mm jack for biomedical pad connection
- RA pin
- LA pin
- RL pin
- SDN pin
- LO+ pin
- LO- pin
- OUTPUT pin
- 3.3V pin
- GND pin
- Operating temperature range: -40 °C to +85 °C
- Guaranteed performance: 0 °C to 70 °C
How to Use AD8232 ECG Heart Pulse Sensor Module - 3.3V
- Connect the module to a 3.3V supply and GND.
- Wire the SDN, LO+, LO-, and OUTPUT pins as needed.
- Attach the RA, LA, and RL connections or use the 3.5mm jack for biomedical pads.
- Read the analog output from your development board.
More Info
- Integrated signal conditioning block for ECG
- Suitable for bioelectrical measurement applications
- Breaks out nine connections from the IC
| Platform | Arduino |
|---|---|
| Interface Type | Analog |
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | Small and suitable for biometrics and medical applications |
| Mounting Type | Pin Header |
| Certifications | RoHS |
| Output Type | Analog Voltage |
| Biometric Parameter | Heart Rate |
| Application | medical,biometry |
| Sensor Type | ECG |
