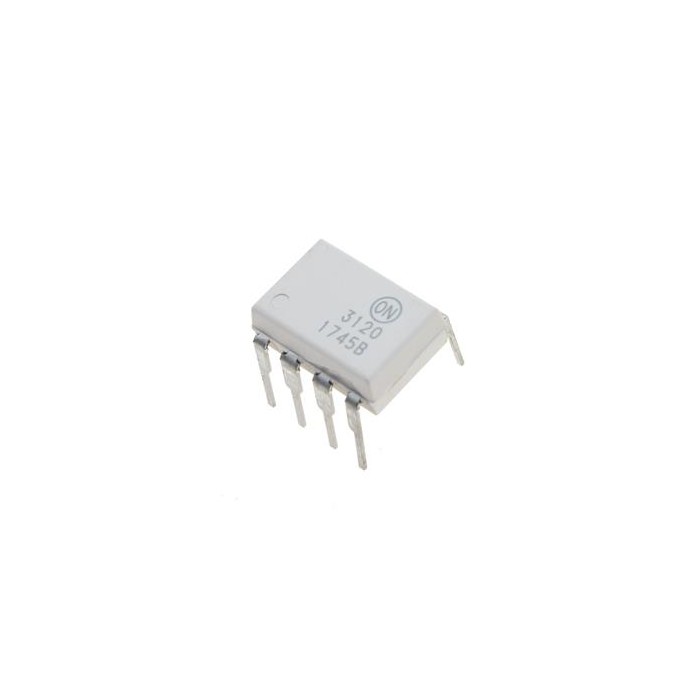

HCPL3120, Logic Output Optocoupler, DIP-8

$0.0000
Out of stock
SKU
O1-0003
Shop with confidence Learn More
TLP521-4, Logic Output Optocoupler, SOIC-16 Previous TLP521-4, Logic Output Optocoupler, SOIC-16

The HCPL3120 optocoupler IC is a high-performance electronic component designed for signal isolation and driving high-power devices. It ensures safe signal transmission between input and output circuits, protecting against electrical noise. This IC is commonly used in applications such as IGBT and MOSFET gate drivers, switching power supplies, and industrial systems.

Specifications of HCPL3120 Gate Driver Optocoupler IC

  • Input Voltage: 15 to 30V
  • Output Current: 2A
  • Response Speed: Rise and fall times less than 500 nanoseconds
  • Insulation Rating: Up to 5000V RMS
  • Operating Temperature: -40°C to 100°C
  • Package: DIP-8
More Information
Package DIP-8
Packaging Tube
Mounting Type Through Hole
Components - Type Logic Output Optocouplers
