Hardkernel ODROID-H4 PLUS Development Board
$429.0000
In stock
SKU
MIN-06-001
Volume discounts:
- +5 4 % $412.5300
- +10 6 % $404.3000
- +25 8 % $396.0700
- +50 10 % $387.8300
- +100 12 % $379.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping
Free delivery in 7-10 days by Express Shipping
More shipping info
Shop with confidence Learn More

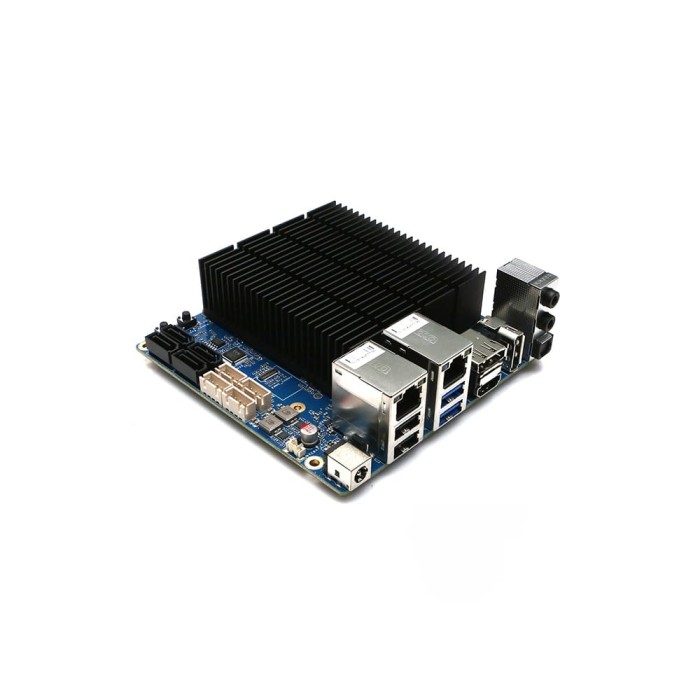

The Hardkernel ODROID-H4 PLUS Development Board is a development board with an Intel Processor N97 and a compact, user-friendly design. It is built for development needs that require flexible interfaces and port expansion. The board includes multiple video outputs, PCIe connectivity, and several I/O ports. It also supports up to 48 GB memory address space and DDR5-4800 memory speed. This product page highlights the main specifications and connectivity options of the ODROID-H4 PLUS Development Board.
Features of Hardkernel ODROID-H4 PLUS Development Board
- Intel Processor N97
- 4 cores and 4 threads
- Multiple video outputs
- PCIe Gen 3 support
- 4-port 2.5GbE card compatibility
- 24-pin IO expansion ports
Specifications of Hardkernel ODROID-H4 PLUS Development Board
- CPU: Intel Processor N97
- Code Name: Alder Lake-N
- Cores/Threads: 4/4
- Cache: 6MB
- Frequency: 3.6GHz
- Max Memory address space (GB): 48
- Max Memory Speed (MT/s): DDR5-4800
- Burst Frequency (MHz): 1200
- Execution Units: 24
- HDMI: 1
- DP: 2
- Gen: 3
- Lanes: 4
- Compatibility with optional 4-port 2.5GbE Net Card: Yes
- USB 2.0: 2
- USB 3.0: 2
- 2.5GbE: 4
- 24pin IO Expansion ports
- I2C x 2
- UART x 1
- USB 2.0 x 3
- HDMI-CEC x 1
- Ext. PWR Button x 1
- Power: 60w (Without HD), 133w (With HDD)
How to Use Hardkernel ODROID-H4 PLUS Development Board
- Connect the required peripherals to the available ports.
- Use the IO expansion and video outputs as needed for your setup.
- Apply power based on the selected configuration.
More Info
- Designed as a development board for flexible hardware integration.
- Includes support for multiple connectivity and expansion options.
| Processor (SoC) | Intel Processor N97 |
|---|---|
| CPU | 4 Cores / 4 Threads, up to 3.6GHz |
| Architecture | x86 |
| RAM Type | DDR5 |
| Storage Support | NVMe, eMMC, SATA |
| GPU/VPU | Intel UHD Graphics (24 EUs) |
| Ethernet | 2.5 Gbps |
| Wi-Fi | No |
| Bluetooth | No |
| USB Ports | 2 x USB 3.0, 3 x USB 2.0 |
| Video Output | HDMI, DisplayPort |
| Hardware Interfaces | I2C, UART |
| GPIO Pins | 24-pin expansion header |
| Camera/Display | No |
| Power Input | DC 14V ~ 20V (Up to 133W) |
| PCIe | PCIe 3.0 |
| Dimensions (mm) | 120 x 120 x 47 mm |
| OS Support | Linux, Ubuntu |
| Weight (g) | 101g |
