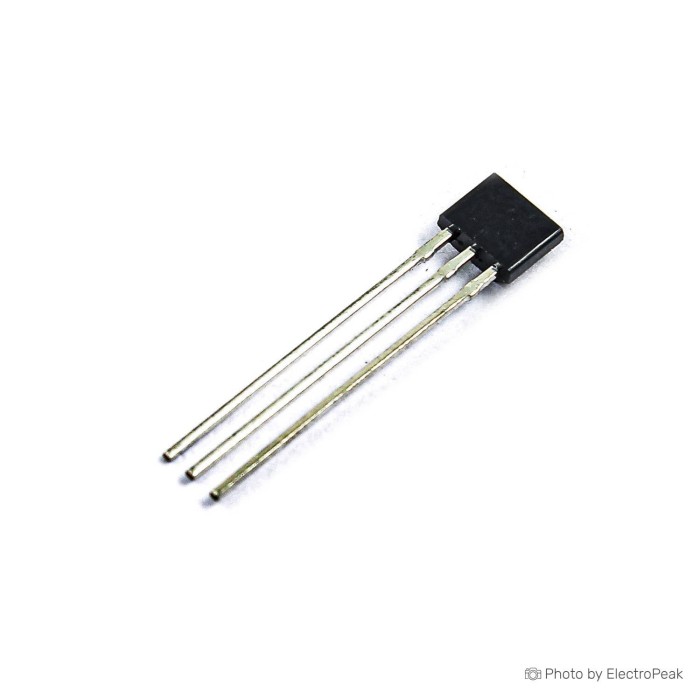

SS49E Linear Hall Effect Sensor
$0.0700
In stock
SKU
SEN-09-017
Volume discounts:
- +100 4 % $0.0673
- +500 6 % $0.0660
- +1000 8 % $0.0647
- +5000 10 % $0.0633
- +10000 11 % $0.0620
SS49E Linear Hall Effect Sensor is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MPU9250 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module
Previous
The SS49E Sensor is a Hall Effect linear sensor that is commonly used to measure the presence and strength of magnetic fields. This pack includes five SS49E sensors, each of which is designed to provide precise analog voltage output proportional to the strength of an applied magnetic field.
Specificatoins of SS49E Linear Hall Effect Sensor Module:
- Type: Hall Effect Linear Sensor
- Model: SS49E
- Output Type: Analog Voltage
- Supply Voltage: Typically 3V to 6V DC
- Sensitivity: Varies by model and may be specified as mV/Gauss
- Output Voltage Range: Typically 0.5V to 4.5V DC
- Operating Temperature Range: -40°C to +85°C
- Package Type: TO-92 (Transistor Outline 92)
- Dimensions: Compact and standardized TO-92 package
- Quantity: Sold as a pack of 5 sensors
Features of SS49E Linear Hall Effect Sensor Module:
- Sensor Type: The SS49E is a Hall Effect sensor, which means it relies on the Hall Effect principle to generate an output voltage in response to a magnetic field.
- Output Type: These sensors provide an analog voltage output. The output voltage varies linearly with the strength of the magnetic field applied.
- Supply Voltage: The typical operating voltage for these sensors is in the range of 4.5V to 6V DC, making them compatible with a variety of power sources.
- Sensitivity: The sensitivity of the sensor, specified in mV/Gauss, indicates how much the output voltage changes for a given change in magnetic field strength. Sensitivity may vary between different SS49E sensor models.
- Output Voltage Range: The typical output voltage range is from 0.5V (in the absence of a magnetic field) to 4.5V (in the presence of a strong magnetic field).
- Operating Temperature Range: These sensors are designed to operate within a temperature range of -40°C to +85°C, making them suitable for various environments.
- Package Type: The sensors are encapsulated in TO-92 packages, which are compact and standardized for ease of use and compatibility with various applications.
