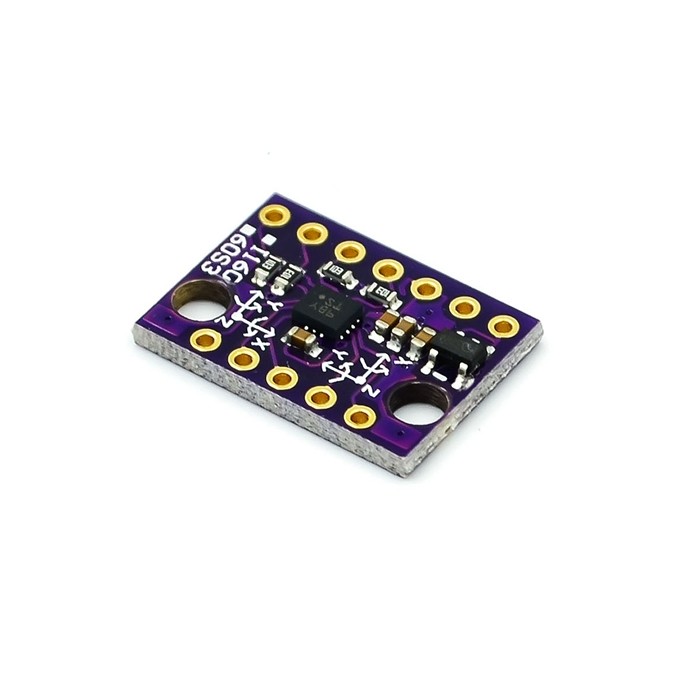

GY-BMI160 Module 6DOF 6 Axis Angular Velocity
$1.2500
In stock
SKU
SEN-02-008
Volume discounts:
- +100 6 % $1.1800
- +300 8 % $1.1500
- +500 10 % $1.1300
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
GY-50 L3G4200 3-Axis Digital Gyro Module
Previous
Description:
The new BOSCH BMI160 inertial measurement unit (IMU) will be the 16 top very low power 3 axis accelerometer and 3 axis gyroscope integrated in one package, designed for intelligent mobile phone, tablet computer, wearable equipment market with high precision, never cut off (always-on) design and application.
BMI160 features:
Ultra low power, high precision, minimum package of 6 axis inertial measurement unit
The application of the never-off (always-on) application of wearable devices is possible
Support precision 9 axis sensor data fusion calculation
Features:
- Name: GY-BMI160 module (three axis gyro + three axis acceleration)
- Using chip: BMI160
- Power supply: 3-5v (internal low dropout voltage regulator)
- Communication mode: Standard IIC/SPI communication protocol
- Chip built-in AD 16bit converter, 16 bit data output
- Gyro range: ± 125 ± 250 ± 500 ± 1000 ± 2000 degrees/s
- Gear range: ± 2 ± 4 ± 8 ± 16g
- With heavy gold PCB, machine soldering process to ensure quality
- Pin spacing: 2.54mm
- Module size: 13mm * 18mm
