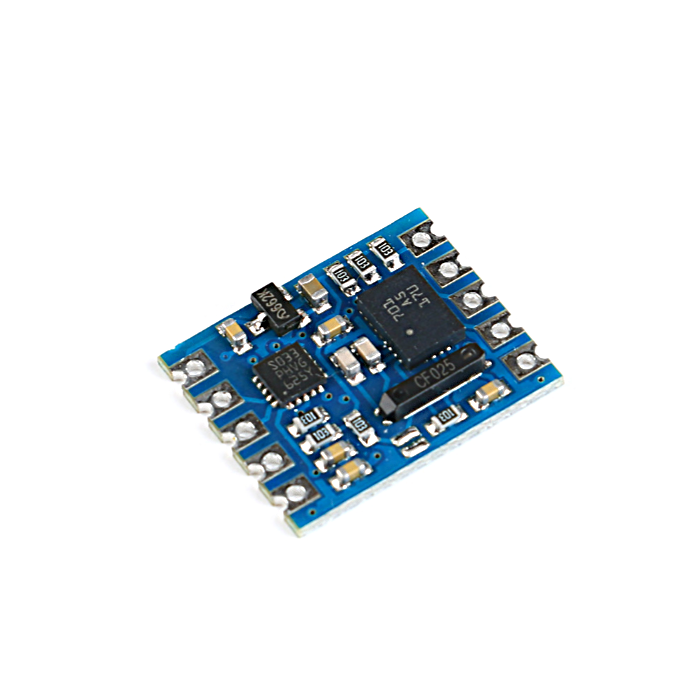

GY-955 9-Axis Module Bosch BNO055 with Kalman Filter
SAVE
As low as $7.9500
In stock
Only %1 left
SKU
SEN-18-028
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MPU9250 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module Previous
The GY-955 9-Axis Module with Bosch BNO055 IC is a high-precision orientation sensor module featuring an integrated Kalman filter. It provides accurate orientation data with a range of -180° to 180° and a resolution of 0.01°. Ideal for robotics, drones, and navigation applications, this module supports I2C communication and operates efficiently on a 3-5V DC power supply. With a compact design and low current consumption of 15mA, it is well-suited for various motion detection tasks in demanding environments.
Specifications of GY-955 9-Axis Module Bosch BNO055
-
Model: GY-955
-
IC: Bosch BNO055
-
Supply Voltage: 3-5V DC
-
Communication Protocol: I2C
-
Measurement Range: -180° to 180°
-
Resolution: 0.01°
-
Repeatability: ±2°
-
Working Current: 15mA
-
Operating Temperature: -20 to 85 °C
-
Storage Temperature: -40 to 125 °C
-
Dimensions: ---
Datasheet of GY-955 9-Axis Module Bosch BNO055
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3-5V DC |
| Operating Current (mA) | 15mA |
| Operating Temp (°C) | -20 to 85 °C |
| Output Type | I2C |
| Accuracy | 0.01° |
| Resolution | 0.01° |
| Measurement Range | -180° to 180° |
| Number of Axes | 9-axis |
| Acceleration Range (g) | ±2g, ±4g, ±8g, ±16g |
| Gyro Range (dps) | ±125dps, ±250dps, ±500dps, ±1000dps, ±2000dps |
| Sampling Rate (Hz) | 100Hz |
| Push Button | No |
| Sensor Type | AHRS |
| Protocols | I2C |
| Supply Current | mA |
| Chipset | Bosch BNO055 |
| Storage Temperature | -40 to 125 °C |
