GY-530 VL53L0X Laser Ranging Sensor Module- Double Hole
$1.7500
In stock
SKU
SEN-19-018
Volume discounts:
- +50 5 % $1.6700
- +100 6 % $1.6400
- +300 9 % $1.6000
- +500 11 % $1.5600
- +1000 13 % $1.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TL-W5MC1 Inductive Metal Proximity Switch Sensor Previous
The vl53l0x v2 matching optical cover uses the most accurate measurement, while playing the role of protecting sensors, extending the life of the sensors, customers can choose and match.

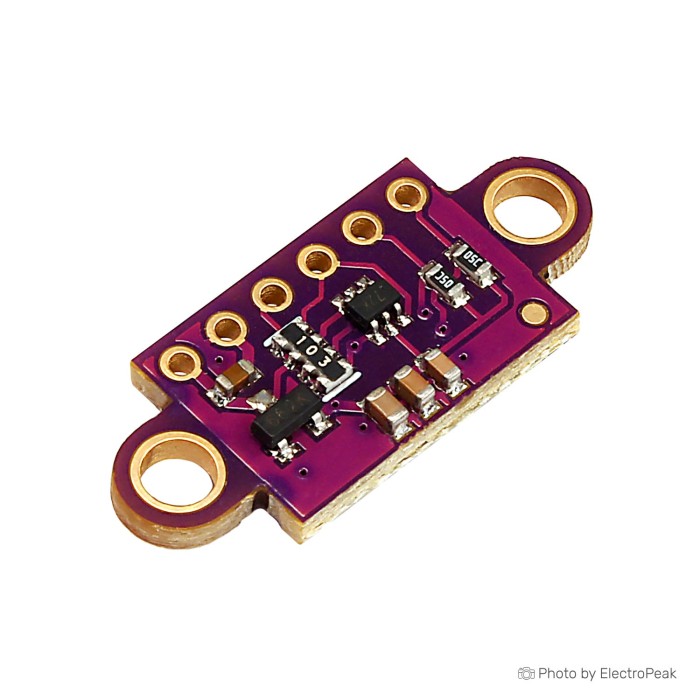

VL53L0X V2 Laser Ranging Sensor Module
Vl53l0x sensor-varying time-of-flight is a new generation of module-varying laser. Vl53lox is a fully integrated sensor equipped with built-in infrared, eye-safe laser, advanced filter and ultra high-speed photon detection array. It has a longer measuring distance, higher speed and accuracy.
Vl53l0x detection capabilities can support a variety of functions including gesture detection or proximity detection from innovative user interfaces, obstacle detection and collision prevention systems for sweeping robots and service robots, presence detection or monitors. power switch for users of home inductance panels, laptops and unmanned aerial vehicles and internet of things (iot) products.
Specification OF GY-530 VL53L0X Laser Ranging Sensor Module- Double Hole:
- working voltage: 3-5v
- Communication Mode: IIC
- absolute measuring distance: 2 m
- xshutdown (reset) / gpio (interrupt)
- dimension 25mm * 10.7mm
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.6 - 5.5 V |
| Operating Current (mA) | 10 mA (average active); 40 mA peak |
| Dimensions (mm) | 25x10.7 mm |
| Mounting Type | Screw holes |
| Output Type | I2C |
| Detection Distance | 2 m |
| Detection Angle (°) | 25° |
| Sensing Method | Infrared (IR) |
| Chipset | VL53L0X |
| Sensor Model | GY-530 VL53L0X |
