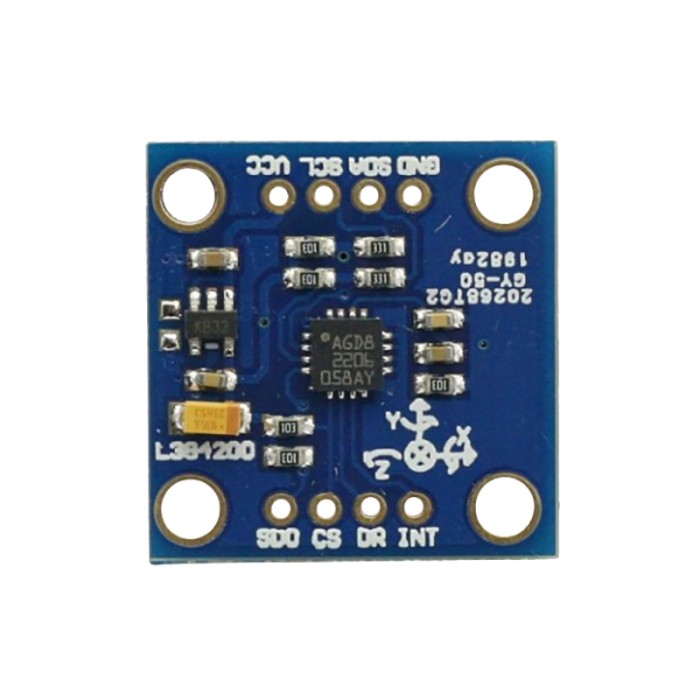

GY-50 L3G4200 3-Axis Digital Gyro Module
$0.8500
In stock
SKU
SEN-02-010
Volume discounts:
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 9 % $0.7700
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
GY-521 MPU6050 3-Axis Accelerometer Gyroscope Module
Previous
The GY-50 L3G4200 3-Axis Digital Gyro Module is based on the L3G4200D low-power, three-axis angular rate sensor. It features selectable full-scale ranges of ±250, ±500, and ±2000 dps, with user-selectable bandwidth and both I2C and SPI communication interfaces. This module is ideal for use in gaming, virtual reality input devices, GPS navigation systems, and robotics due to its high performance and robust design, including an integrated temperature sensor and advanced filtering capabilities.
Specifications of GY-50 L3G4200 3-Axis Digital Gyro Module
-
Gyro range: ±250, ±500, ±2000 dps (user-selectable)
-
Communication: I2C/SPI digital output interface
-
Data output: 16-bit rate value, 8-bit temperature data
-
Operating voltage: 2.4V to 3.6V
-
Low voltage-compatible IO: 1.8V
-
Embedded temperature sensor and power-down/sleep mode
-
Operating temperature: -40°C to +85°C
-
High shock survivability
-
Dimensions: ---
Datasheet of GY-50 L3G4200 3-Axis Digital Gyro Module
