GY-282 HMC5983 3-Axis Compass Magnetometer Module
$12.5000
Out of stock
SKU
SEN-09-028
Volume discounts:
- +25 4 % $12.0000
- +50 6 % $11.7400
- +100 8 % $11.4900
- +300 10 % $11.2400
- +500 12 % $10.9900
Shop with confidence Learn More
GY-271 QMC5883L 3-Axis Compass Magnetometer Sensor Module Previous

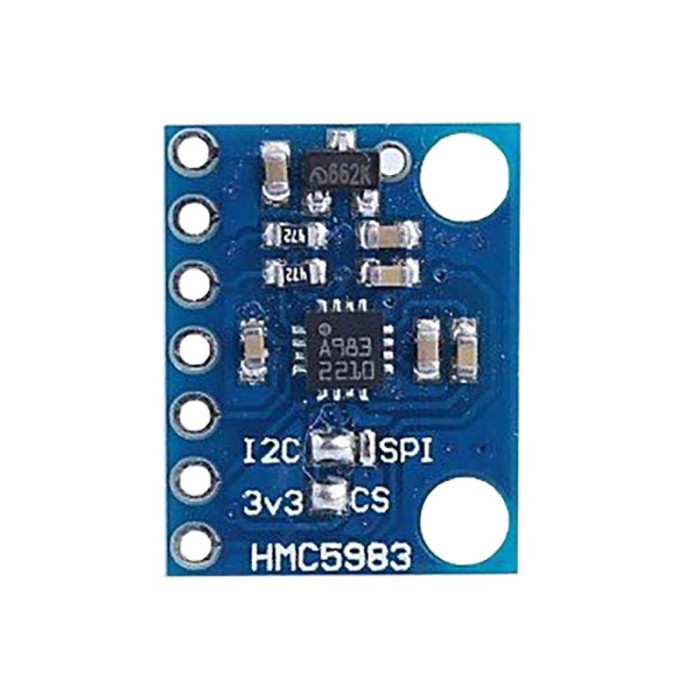

The GY-282 HMC5983 3-Axis Compass Magnetometer Module is a high-precision module compatible with the HMC5883L. It supports both I2C and SPI communication, making it versatile for various applications. With built-in temperature compensation and automatic offset correction, the module ensures stable and accurate heading angle readings. Its compact PCB design and high output frequency make it suitable for navigation, robotics, and motion sensing.
Specifications of GY-282 HMC5983 3-Axis Compass Magnetometer Module
-
Chip : HMC5983
-
Communication: I2C / SPI (optional)
-
Power Supply: DC 3V ~ 5V
-
Output Features:
-
Temperature-compensated data output
-
Automatic offset compensation
-
Maximum output frequency: 220 Hz
-
-
Heading Angle Accuracy: 1° ~ 2°
-
Dimensions: 14.5x18.5mm
Datasheet of GY-282 HMC5983 3-Axis Compass Magnetometer Module
| Interface Type | I2C, SPI |
|---|---|
| Operating Voltage (V) | 3V ~ 5V |
| Operating Current (mA) | 0.1 |
| Operating Temp (°C) | -30 to 85 |
| Dimensions (mm) | 14.5x18.5mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Digital |
| Accuracy | 1° ~ 2° |
| Resolution | 2 milli-gauss (12-bit ADC) |
| Measurement Range | ±0.88 to ±8.1 Gauss |
| Number of Axes | 3-axis |
| Sampling Rate (Hz) | 220 Hz |
| Push Button | No |
| Sensor Type | Magnetometer Module |
| Measurement Principle | Anisotropic Magnetoresistive (AMR) |
| Protocols | I2C, SPI |
| Supply Current | uA |
