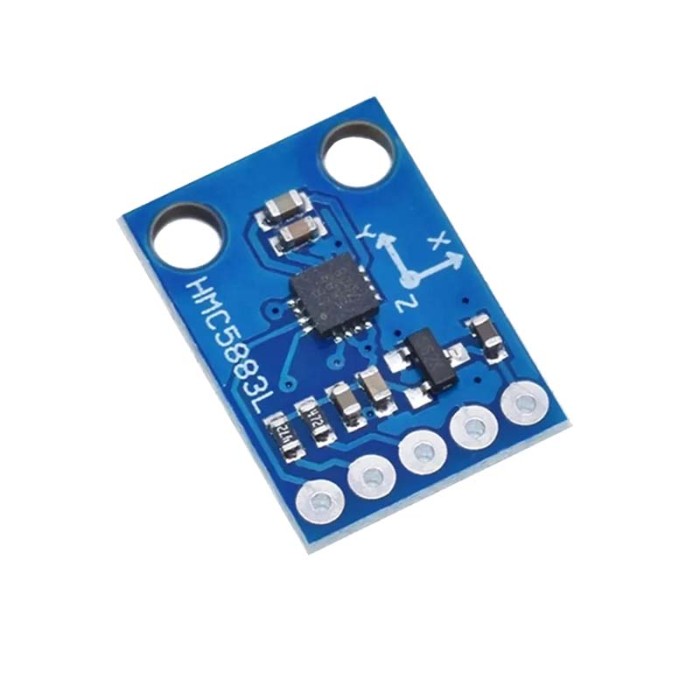

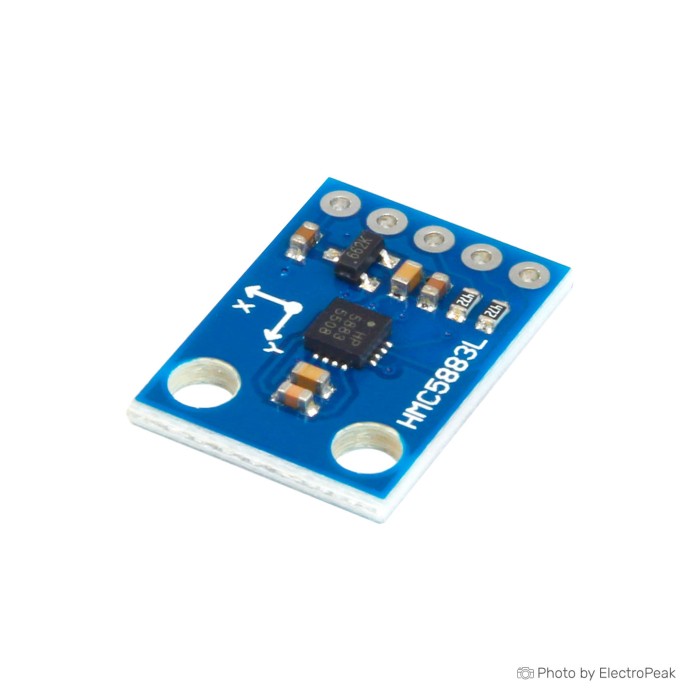

GY-273 5883L 3-Axis Compass Magnetometer Module
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
SEN-09-029
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The GY-273 3-Axis Compass Magnetometer Module is a compact sensor for magnetic field measurement and heading detection. It is available with either the HMC5883L or QMC5883L chip. The module supports I2C communication and operates on a 3V to 5V DC range. It provides a measuring range of ±1.3 to ±8 Gauss and heading accuracy of 1° to 2°. The max data rate is 160 Hz. Its compact size makes it suitable for electronics, robotics, and navigation-related projects.
Features of GY-273 5883L 3-Axis Compass Magnetometer Module
- 3-axis compass sensing
- HMC5883L or QMC5883L chip options
- I2C communication
- Wide operating voltage range
- Heading detection support
- Compact module size
Specifications of GY-273 5883L 3-Axis Compass Magnetometer Module
- Chip Options: HMC5883L (L883) / QMC5883L (5883)
- Operating Voltage: 3V ~ 5V DC
- Communication: I2C Protocol
- Measuring Range: ±1.3 ~ ±8 Gauss
- Heading Accuracy: 1° ~ 2°
- Max Data Rate: 160 Hz
- Dimensions: 18.5x13.5x2.5mm
How to Use GY-273 5883L 3-Axis Compass Magnetometer Module
- Connect the module to a compatible I2C interface.
- Power the module within the 3V to 5V DC range.
- Read magnetic field and heading data from the sensor.
More Info
- Datasheets are available for HMC5883L and QMC5883L.
- Check the I2C address if the module does not respond as expected.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3V ~ 5V DC |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 18.5x13.5x2.5mm |
| Mounting Type | THT (Through Hole) |
| Output Type | I2C |
| Accuracy | 1° ~ 2° |
| Measurement Range | ±1.3 ~ ±8 Gauss |
| Number of Axes | 3-axis |
| Sampling Rate (Hz) | 160 Hz |
| Push Button | No |
| Sensor Type | Magnetometer Module |
| Measurement Principle | Anisotropic Magnetoresistive (AMR) |
| Protocols | I2C |
| Chipset | HMC5883L (L883), QMC5883L (5883) |
