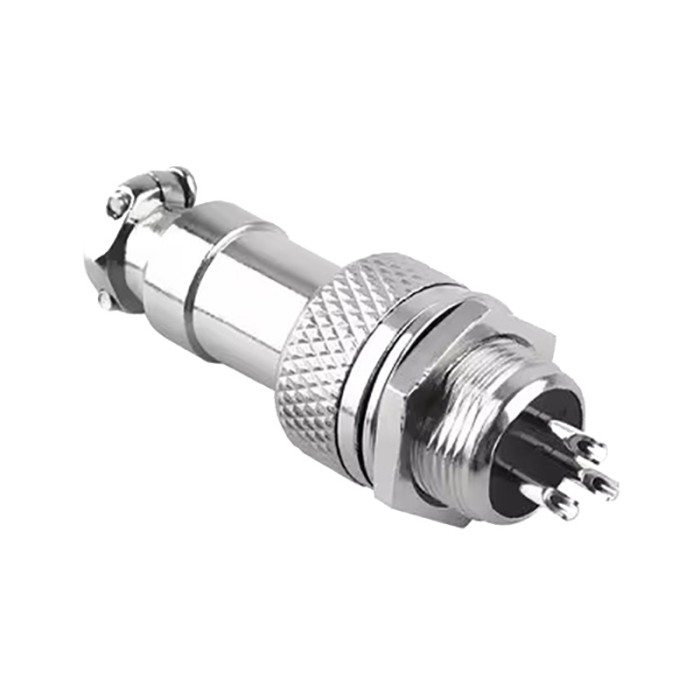

GX20 Aviation Socket Connector
SAVE
As low as $0.6300
In stock
Only %1 left
SKU
CAB-32-003
GX20 Aviation Socket Connector is available to buy in increments of 2
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The GX20 Aviation Socket Connector is designed for heavy-duty electrical applications. It offers core configurations from 2 to 15 cores. The connector uses a zinc alloy shell with nickel plating and copper contacts with silver plating. It is suitable for a wide range of operating conditions with an operating temperature range of -20℃ to 85℃. This GX20 Aviation Socket Connector is built for reliable electrical connection in industrial and commercial environments.
Features of GX20 Aviation Socket Connector
- 2 to 15 core configurations
- Zinc alloy shell
- Nickel-plated shell
- Copper contacts
- Silver-plated contacts
- Wide operating temperature range
Specifications of GX20 Aviation Socket Connector
- Rated current: 5A to 10A depending on the pin configuration
- Working voltage (AC V) minimum: 150V to 250V
- Resistant voltage (AC V) minimum: 1200V to 1500V
- Insulation resistance (MΩ) at DC 500V: 1000MΩ to 1500MΩ
- Contact resistance (mΩ) at DC 1A: 5mΩ
- Hole dimension: 20mm
- Contact hole diameter: 1.5mm to 2.95mm depending on pin configuration
- Operating temperature: -20℃ to 85℃
- Shell material: Zinc alloy with nickel plating
- Contact material: Copper with silver plating
How to Use GX20 Aviation Socket Connector
- Select the pin configuration required for your application.
- Install the connector using the 20mm hole dimension.
- Connect the matching contacts according to the contact hole diameter.
More Info
- Datasheet: View Here 1
- Datasheet: View Here 2
