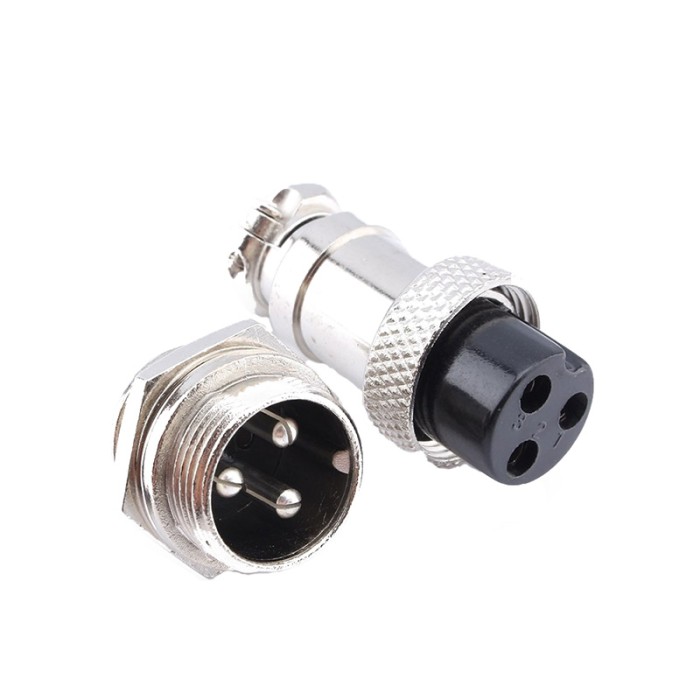

GX16 Aviation Socket Connector
SAVE
As low as
$0.2000
In stock
Only %1 left
SKU
CAB-32-002
GX16 Aviation Socket Connector is available to buy in increments of 2
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
GX12 Aviation Socket Connector
Previous
The GX16 Aviation Socket Connector series is a versatile and durable solution for various electrical connectivity needs. These connectors are available in multiple configurations, ranging from 2 to 10 cores, making them ideal for a wide range of applications. The connectors are designed with a zinc alloy shell and nickel plating, providing excellent corrosion resistance and longevity. The internal contacts are made of copper with silver plating, ensuring efficient conductivity. With an operational temperature range of -20℃ to 85℃, these connectors are suitable for use in various environmental conditions.
Specifications of GX16 Aviation Socket Connector
-
Rated Current/Voltage: 4A-125V to 5A-125V depending on pin configuration
-
Working Voltage (AC V) Minimum: 200V
-
Resistant Voltage (AC V) Minimum: 1500V to 2000V
-
Insulation Resistance (MΩ) at DC 500V: 1500MΩ to 2000MΩ
-
Contact Resistance (mΩ) at DC 1A: 3mΩ
-
Hole Dimension: 16mm
-
Contact Hole Diameter: 1.15mm to 2.45mm depending on pin configuration
-
Operating Temperature: -20℃ to 85℃
-
Shell Material: Zinc alloy with nickel plating
-
Contact Material: Copper with silver plating
Datasheet of GX16 Aviation Socket Connector
