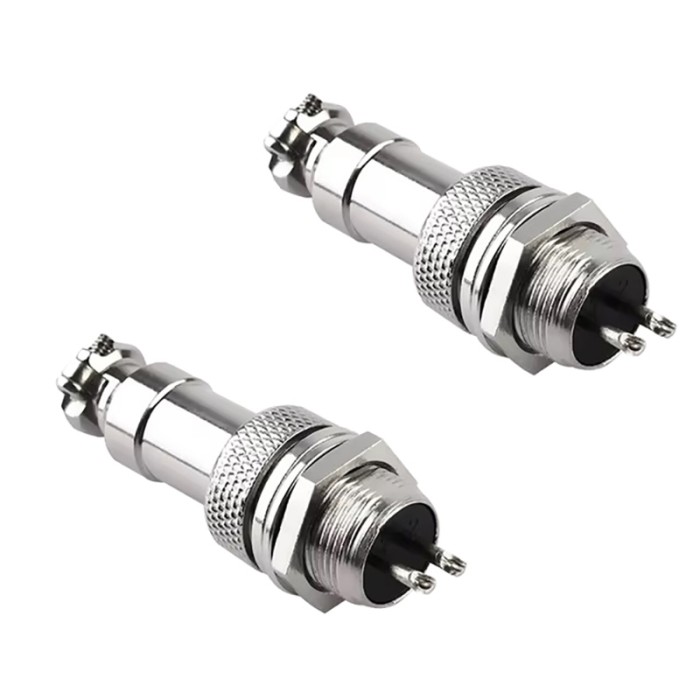

GX12 Aviation Socket Connector
SAVE
As low as $0.3000
In stock
Only %1 left
SKU
CAB-32-001
GX12 Aviation Socket Connector is available to buy in increments of 2
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The GX12 Aviation Socket Connector is a metal connector series for electrical applications. It is available in 2 to 7 core options to suit different connection needs. The connector uses a zinc alloy shell with nickel plating for durability and corrosion resistance. Its insert material is Bakelite, and the contact material is copper with silver plating. It is designed for operating temperatures from -20℃ to 85℃.
Features of GX12 Aviation Socket Connector
- 2 to 7 core options
- Zinc alloy shell with nickel plating
- Bakelite insert material
- Copper contacts with silver plating
- Wide operating temperature range
Specifications of GX12 Aviation Socket Connector
- Rated Current/Voltage: 5A-125V
- Voltage Endurance (AC V) 1 minute: 1500V
- Insulation Resistance (MΩ) at DC 500V: 1500MΩ
- Contact Resistance (mΩ) at DC 1A: 10mΩ
- Installation Hole Diameter: 12mm
- Soldering Cup Mouth Opening: 0.9mm
- Contact Hole Diameter: 1.15mm
- Operating Temperature: -20℃ to 85℃
- Shell Material: Zinc alloy with nickel plating
- Insert Material: Bakelite
- Contact Material: Copper with silver plating
How to Use GX12 Aviation Socket Connector
- Select the required 2 to 7 core configuration.
- Install the connector using the 12mm installation hole diameter.
- Connect wires through the soldering cup mouth opening and contact hole diameter.
More Info
- GX12 aviation socket connector series
- Datasheet available via the provided link
