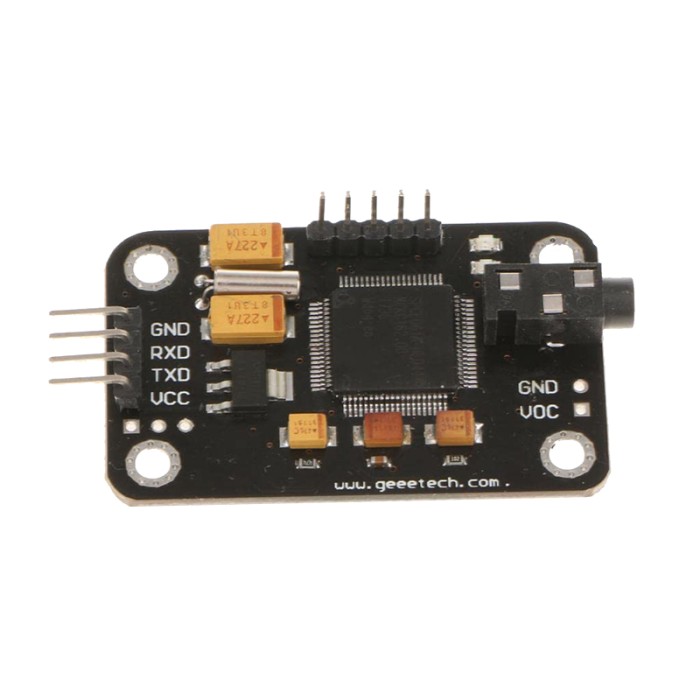

Geeetech Voice Recognition Module
$21.9500
In stock
SKU
MOD-04-005
Volume discounts:
- +25 4 % $21.0800
- +50 6 % $20.6400
- +100 8 % $20.2000
- +300 10 % $19.7700
- +500 12 % $19.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-A394 Bluetooth Power Amplifier Board With Knob- 2x50W Previous
The Geeetech Voice Recognition Module is a sophisticated tool for adding voice control to your projects. It can store up to 15 voice instructions, divided into three groups of five. These instructions are recorded and imported by group via serial commands. With a digital interface supporting 5V TTL level UART and an analog interface for microphones, this module is versatile and easy to integrate. Despite its robust functionality, it is speaker independent, making it less accurate with different users.
Specifications of Geeetech Voice Recognition Module
-
Operation Voltage: 4.5-5.5V
-
Operation Current: <40mA
-
Dimensions: 30 x 47.5 mm
-
Digital Interface: 5V TTL level UART interface
-
Analog Interface: 3.5mm mono-channel microphone connector + microphone pin interface
-
Voice Instruction Storage: 15 instructions (divided into 3 groups of 5)
-
Speaker Independent
Development Resources of Geeetech Voice Recognition Module
| Interface Type | Analog, UART |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | <40mA |
| Dimensions (mm) | 30 x 47.5 mm |
| Mounting Type | Screw holes |
| Audio Function | Microphone |
| Input Types | Microphone |
| Bluetooth Ver. | No |
| Output Type | UART |
| Channels | 1-channel |
