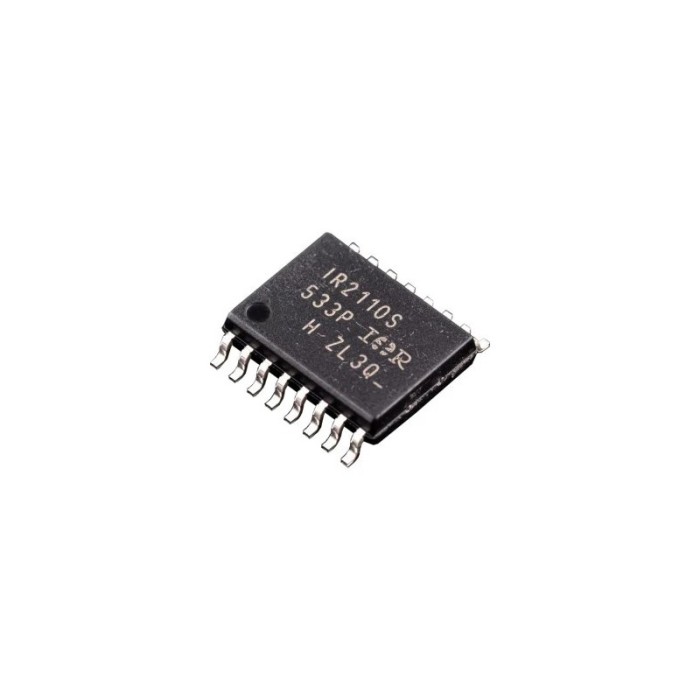

Gate Driver IR2110S
$0.3500
In stock
SKU
S1-0126
Gate Driver IR2110S is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Gate Driver IR2112S
Previous
The IR2110S is a high-voltage, high-speed gate driver IC with independent high- and low-side referenced output channels. It supports floating operation up to +500V and is ideal for driving MOSFETs or IGBTs in half-bridge and full-bridge configurations. With 3.3V logic compatibility, undervoltage lockout, and matched propagation delays, it offers robust and reliable switching performance.
Specifications of IR2110S Gate Driver
-
Channels: 2 (High-side and Low-side)
-
Input Voltage (Vcc): 10V to 20V
-
Logic Supply Range: 3.3V to 20V
-
Output Current (Source/Sink): 2.5A / 2.5A
-
Floating Channel Voltage: Up to +500V
-
Voltage Class: 500V
-
Isolation Type: Functional levelshift
-
Turn-On Delay: 120 ns
-
Turn-Off Delay: 94 ns
-
VBS UVLO (On/Off): 8.6V / 8.2V
-
VCC UVLO (On/Off): 8.5V / 8.2V
-
dV/dt Immunity: Yes
-
CMOS Logic Inputs: Schmitt-triggered with pull-down
-
Logic and Power Ground Offset: ±5V
-
Shutdown Logic: Edge-triggered, cycle-by-cycle
-
Qualification: Industrial grade
Datasheet of IR2110S Gate Driver
| Parametrics | IR2110S | IR2112S | IR2113S |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Configuration | High-side and Low-side | High-side and Low-side | High-side and Low-side |
| Input Vcc (Min - Max) | 10 V - 20 V | 10 V - 20 V | 10 V - 20 V |
| Isolation Type | Functional levelshift | Functional levelshift | Functional levelshift |
| Output Current (Source) | 2.5 A | 0.25 A | 2.5 A |
| Output Current (Sink) | 2.5 A | 0.5 A | 2.5 A |
| Qualification | Industrial | Industrial | Industrial |
| Turn-Off Propagation Delay | 94 ns | 105 ns | 94 ns |
| Turn-On Propagation Delay | 120 ns | 125 ns | 120 ns |
| VBS UVLO (On) | 8.6 V | 8.5 V | 8.6 V |
| VBS UVLO (Off) | 8.2 V | 8.1 V | 8.2 V |
| VCC UVLO (On) | 8.5 V | 8.6 V | 8.5 V |
| VCC UVLO (Off) | 8.2 V | 8.2 V | 8.2 V |
| Voltage Class | 500 V | 600 V | 600 V |
