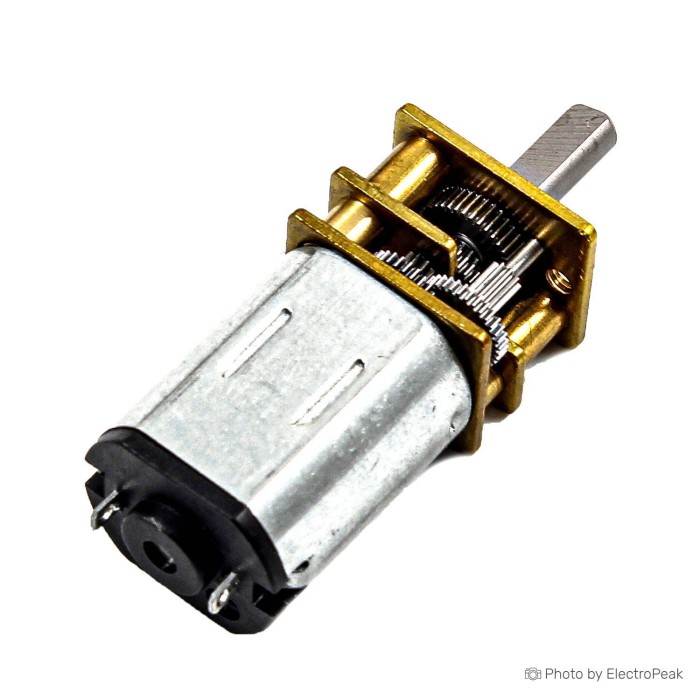

GA12-N20 6V 70 RPM Metal Gear Motor

The GA12-N20 6V 100 RPM Metal Gear Motor is a compact DC gear motor with a metal gearbox. It is designed for projects that need reduced speed and increased torque. The GA12-N20 is suitable for robotics, smart locks, RC vehicles, and DIY projects. Its gear reduction helps deliver controlled rotational output in a small form factor.

Features of GA12-N20 6V 100 RPM Metal Gear Motor

• Compact DC gear motor
• Metal gearbox
• Higher torque output
• Reduced speed output

Specifications of GA12-N20 6V 100 RPM Metal Gear Motor

• Input voltage: 6V
• No-load speed: 100 RPM
• Rated load speed: 80 RPM
• Rated torque: 0.4 kg·cm
• Rated current: 160mA
• Stall torque: 3.2 kg·cm
• Gear ratio: 1:150
• Gearbox type: Metal
• Dimensions: approx. 36x12x10mm
• Applications: Robotics, smart locks, RC vehicles, DIY projects

How to Use GA12-N20 6V 100 RPM Metal Gear Motor

1. Connect the motor to a 6V power source.
2. Integrate it into the target mechanical or robotics project.
3. Adjust voltage or current to control speed.

More Info

• DC motor with gear reduction
• Mechanical power output is increased through the gearbox
