5 Direction Navigation Rocker Joystick Button Module
$0.5500
In stock
SKU
misc-04-035
Volume discounts:
- +100 5 % $0.5200
- +300 7 % $0.5100
- +500 11 % $0.4900
- +1000 13 % $0.4800
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Tactile Push Button Switch - 5.8x5.8mm, 6 Feet
Previous
Description

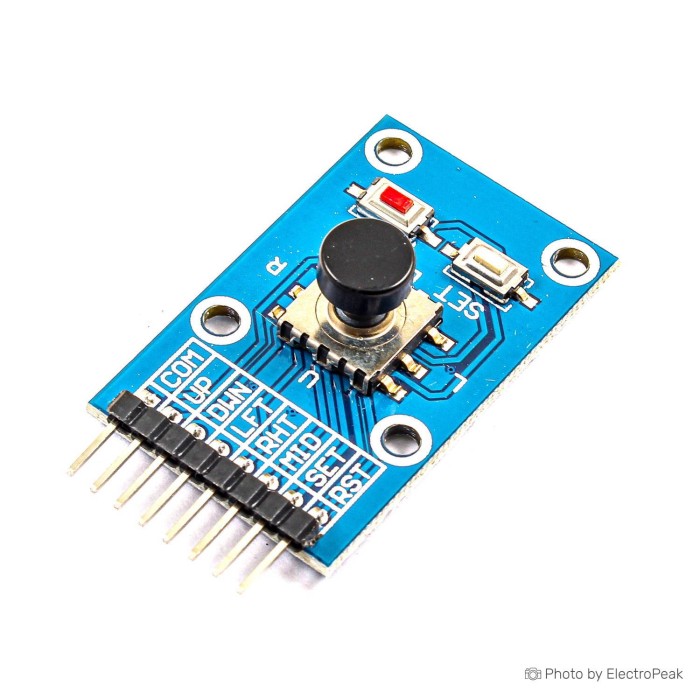

Easily navigate control panels etc. with this small form factor joystick module. This a five direction navigation button module, already placed on a breakout board for your convenience.
Features
Number of IO pins: 7
Operating voltage: 2.0V-9.0V
Operating temperature: -40° Celsius to +85°
Pin Description
COM：Common ，VCC or GND connected to the MCU development board
Up direction button：Connect to IO pin of the MCU
DWN：Down direction button，Connect to IO pin of the MCU
LFT: Left direction button, Connect to IO pin of the MCU
RHT: Right direction button,Connect to IO pin of the MCU
MID: Middle direction button, Connect to IO pin of the MCU
SET: Set button, Connect to IO pin of the MCU
RST: Reset button, Connect to IO pin of the MCU
