X660 FingerPrint Access Control
$28.9500
In stock
SKU
SEN-14-010
Volume discounts:
- +10 3 % $28.0700
- +25 5 % $27.6300
- +50 6 % $27.1900
- +100 8 % $26.7500
- +300 9 % $26.3100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
R301 Semiconductor Fingerprint Sensor Module Previous

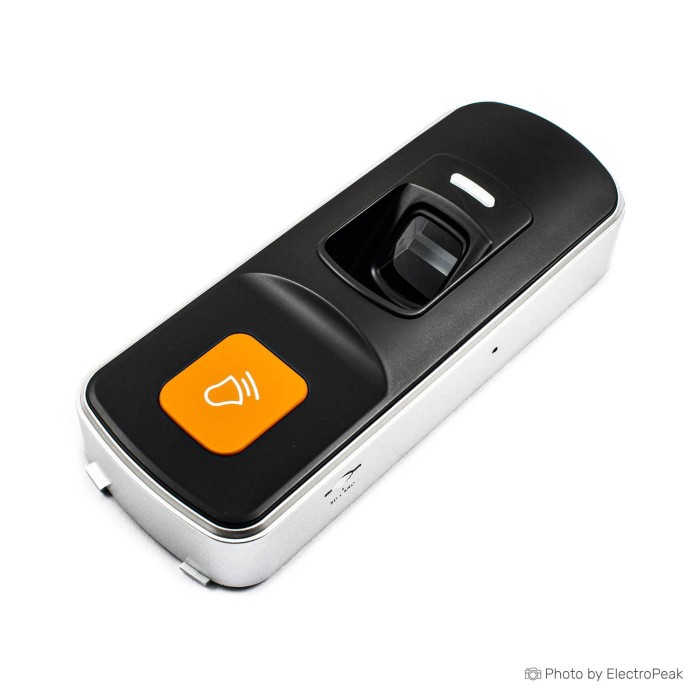

X660 Fingerprint Access Control is a standalone access control system for managing entry and exit. It supports fingerprint and card-based operation, with data transfer available through an SD card. The unit is designed for easy user management and supports doorbell integration, Wiegand output, indicator light, and buzzer.
This access control unit includes internal card reading and can store fingerprint and card data. It is suitable for use in offices, schools, and other public locations where access management is required.
Features of X660 Fingerprint Access Control
- Standalone access control system
- Fingerprint and card operation
- SD card data transfer
- Wiegand26 output
- Internal EM card reader
- Indicator light and buzzer
- Doorbell support
Specifications of X660 Fingerprint Access Control
- Model: K-X660
- Supply voltage: 12VDC ± 10%
- Sleep current: <20mA
- Working current: <100mA
- Relay current: 3A
- Working temperature: -20°c -60°c
- Humidity: 20%RH-80%RH
- Fingerprint capacity: 3000
- Wiegand interface: Wiegand26
- Internal card reader: EM and compatible with EM
- Resolution: 450 DPI
- Fingerprint input time: <1S
- Recognition time: <2S
- FAR: <0.0001%
- FRR: <0.01%
- Dimensions: 155*66 * 28 mm
- Weight: 400g
How to Use X660 Fingerprint Access Control
- Use the rear buttons to manage cards and fingerprints.
- Use code 81118 to delete all main cards.
- Use code 8118 to add a master card or master fingerprint.
- Use code 1881 to delete a master card or master fingerprint.
More Info
- Each device can have up to 2 master users for add and delete operations.
- The device supports easy add and remove user management.
- Waterproof and dustproof protection is included.
