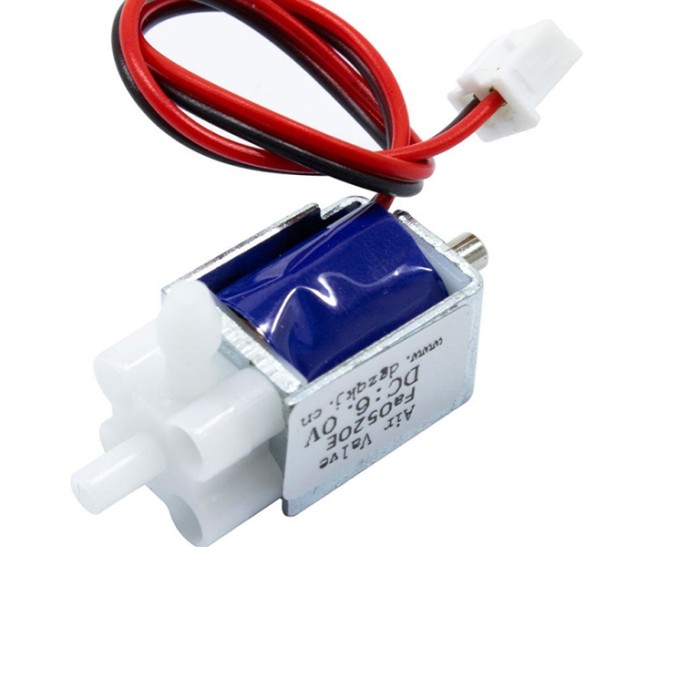

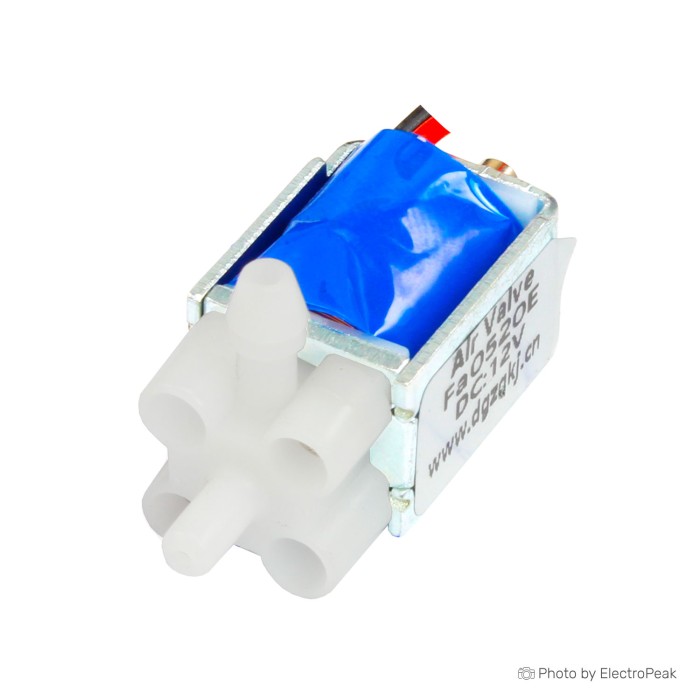

Description of FA0520E Three-way Gas Air Electric Solenoid Valve:
Solenoid valves are the most frequently used control elements in fluidics. Their tasks are to shut off, release, dose, distribute or mix fluids. They are found in many application areas. Solenoids offer fast and safe switching, high reliability, long service life, good medium compatibility of the materials used, low control power and compact design.
Specification of FA0520E Three-way Gas Air Electric Solenoid Valve:
- Model: FA0520E
- Voltage: 6V, 12V, 24V (Optional)
- Rated current: <400mA
- Gassing speed: <3S (time required for air pressure from 300mmHg to 15mmHg in 500cc container)
- Pressure range: 0-350mmhg
- Tightness: After the inflation pressure is 0 to 300 mmHg in the 500CC container, the pressure drop is less than 5mmHg / min after 30 seconds.
- Fluid used: AIR
- Life: more than 50,000 times
- Operating temperature : 0-55 „
- Noise: <60dB
- Power: <2.5w
