Espressif ESP32-H2-DevKitM Development Board
$8.9500
In stock
SKU
DEV-02-013
Volume discounts:
- +25 4 % $8.5900
- +50 6 % $8.4100
- +100 8 % $8.2300
- +300 10 % $8.0600
- +500 12 % $7.8800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Espressif ESP32-H2-Mini-1-N4 Development Board Previous

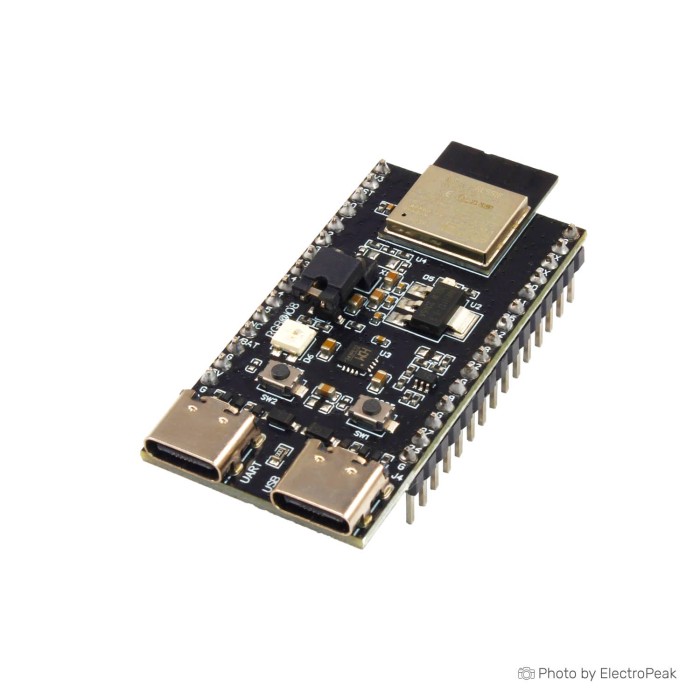

ESP32-H2-DevKitM-1 is an entry-level development board based on Bluetooth® Low Energy and IEEE 802.15.4 combo module ESP32-H2-MINI-1 or ESP32-H2-MINI-1U.
Most of the I/O pins on the ESP32-H2-MINI-1/1U module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-H2-DevKitM-1 on a breadboard.
Specification of Espressif ESP32-H2-DevKitM Development Board:
- Enables wireless connectivity support for Bluetooth and ZigBee standards
- Includes 19 configurable GPIO pins for connecting peripherals
- It has 4 MB Flash, 320 KB SRAM, 128 KB ROM and 4 KB SRAM in RTC
- It is equipped with a PCB antenna, offering a stable wireless connection
- It allows operation in a wide temperature range from -40°C to 85°C
- It offers operation with a voltage of 3.3 V and 5 V, with the default power supply option using USB Type C
- It enables the development of IoT applications with wireless communication functions
For more information and how to use this product, please read the documentation of this product.
| MCU/SoC | ESP32-H2-MINI-1 |
|---|---|
| Product Family | ESP32 |
| Architecture | RISC-V |
| CPU Cores | Single-core 32-bit RISC-V |
| Clock Speed (MHz) | 96 MHz |
| Flash | 4 MB |
| SRAM | 320 KB |
| EEPROM | No |
| External Memory | PSRAM: 0 MB |
| GPIO Pins | 19 |
| SPI interface Pins | 3 |
| I2C interface Pins | 2 |
| UART interface Pins | 2 |
| USB Ports | USB 2.0 Full Speed (12 Mbps) |
| CAN Bus Support | 1 x CAN Controller (Twai) |
| Ethernet Support | No |
| ADC Channels | 5 |
| DAC Channels | 0 |
| PWM Channels | 6 |
| Timers Count | 4 |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| GPIO Current (mA) | 12 mA |
| Sleep Current (µA) | 7 uA |
| Wireless | Thread, Zigbee, IEEE 802.15.4, Bluetooth Low Energy, Matter |
| Form Factor | compact development board |
| IDE Support | Arduino IDE, ESP-IDF |
| Input Voltage (V) | USB Type-C, 5V/GND header, 3.3V/GND header |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5.3 |
