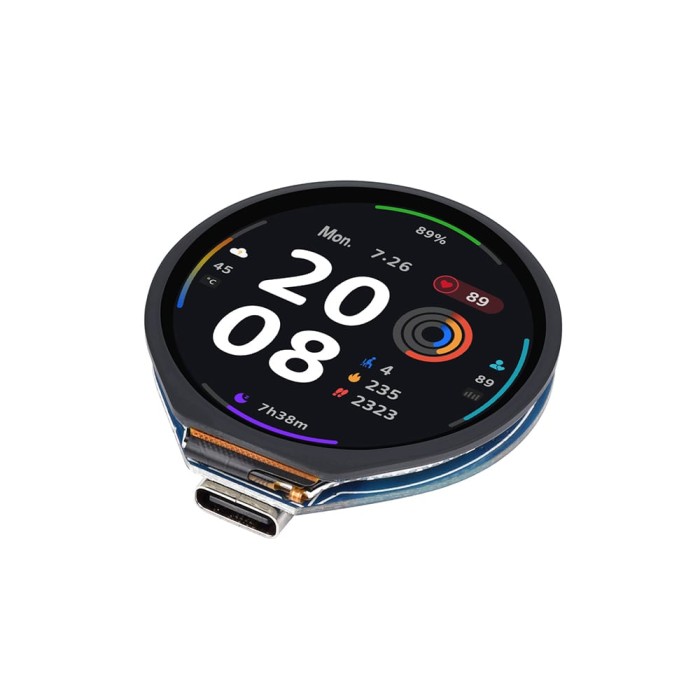

ESP32S3 1.28-inch Round LCD Display With Touch

[DEV-02-006]
Volume discounts:
  • +10 4 % $26.71
  • +25 6 % $26.18
  • +50 8 % $25.66
  • +100 9 % $25.14
  • +300 11 % $24.62
Shop with confidence Learn More
Availability: 111 items
SKU
DEV-02-006
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$27.75

The ESP32S3 1.28-inch Round LCD Display With Touch is a versatile and high-performance display for all your projects. With its compact size and easy installation, this display offers a clear and responsive touch interface, making it ideal for various applications such as smartwatches and fitness trackers. It has a high-resolution display and supports both horizontal and vertical orientations, providing flexibility for your designs.

ESP32-S3-Touch-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Specification of ESP32S3 1.28-inch Round LCD Display With Touch:

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Adopts CNC metal case with Acrylic dull-polish bottom plate
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header
  • Adapting 6 × GPIO pins via SH1.0 connector
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
