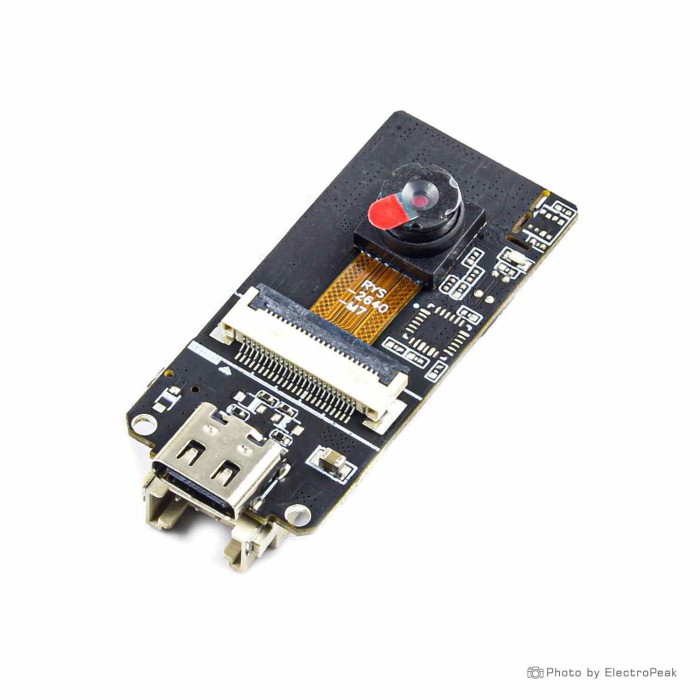

Esp32 Wifi Bluetooth With M5Cam Ov2640 Camera Module

Description:

The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core. The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonder chip. It also features a LiPo charger (IP5306) , so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.

Specification:

• Dual-core Ten silica LX6 microprocessor
• Up to 240MHz clock frequency
• 520kB internal SRAM
• 4MB Flash memory
• Integrated 802.11 BGN WiFi transceiver
• Integrated dual-mode Bluetooth (classic and BLE)
• Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
• CP2104 USB TTL
• OV2640 sensor
• Output Formats(8-bit):
• YUV(422/420)/YCbCr422
• RGB565/555
• 8-bit compressed data
• 8-/10-bit Raw RGB data
• Maximum Image Transfer Rate
• UXGA/SXGA: 15fps
• SVGA: 30fps
• CIF: 60fps
• Scan Mode: Progressive
• Camera specifications
• CCD size : 1/4inch
• Field of View : 78 degree
• Maximum Pixel: 200W
• Sensor best resolution: 1600 * 1200
• Dimension: 25mm x 24mm
