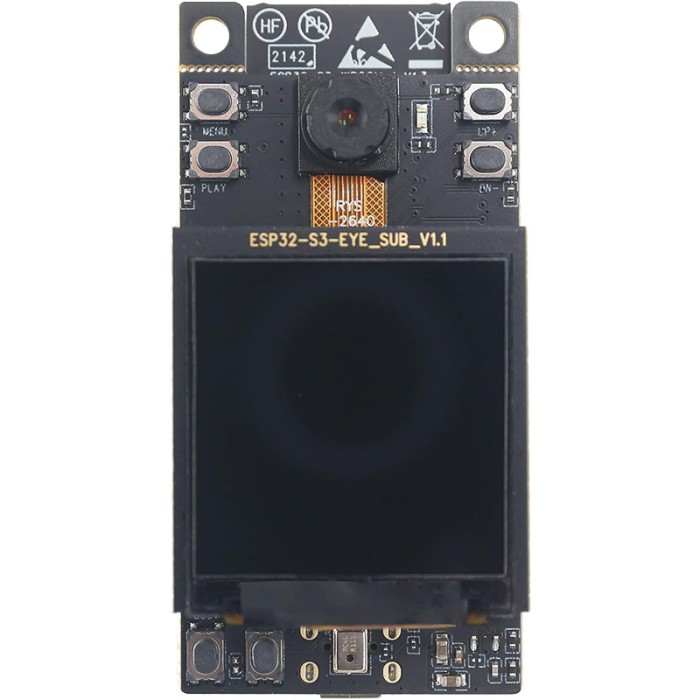

ESP32-S3-EYE Development Board
$72.9500
In stock
SKU
DEV-02-034
Volume discounts:
- +5 4 % $70.1200
- +10 6 % $68.7000
- +25 8 % $67.2900
- +50 10 % $65.8700
- +100 12 % $64.4500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ESP-EYE v2.1 Development Board Previous
The ESP32-S3-EYE Development Board is a powerful, compact microcontroller platform designed for camera-based applications, featuring a 2MP OV2640 camera and built-in neural network computing support. It integrates Wi-Fi and Bluetooth 5 (LE) and offers 8MB Flash, 8MB PSRAM, and a variety of peripherals such as a three-axis accelerometer and microphone. Ideal for IoT, smart devices, and AI-driven applications, the board includes a 1.5-inch LCD, external battery support, and multiple power regulation options for flexible usage.
Specifications of ESP32-S3-EYE Development Board
-
Chip embedded: ESP32-S3
-
Flash: 8MB
-
PSRAM: 8MB Octal PSRAM
-
Camera: OV2640 with 2MP, 1600x1200 resolution
-
LCD Display: Yes
-
Accelerometer: Three-axis QMA7981
-
Microphone: I2S MEMS Microphone, 61 dB SNR
-
External power supply: Supported, via Li-ion battery
-
Power Regulator:
-
5V to 3.3V LDO
-
3.3V to 1.5V LDO for camera
-
3.3V to 2.8V LDO for camera
-
-
Battery Charger Chip: ME4054BM5G-N (1A linear Li-ion charger)
-
Dimensions: ---
-
USB Port: Micro-USB for power and communication
-
Connectivity: Wi-Fi, Bluetooth 5 (LE)
Datasheet of ESP32-S3-EYE Development Board
| MCU/SoC | ESP32-S3 |
|---|---|
| Product Family | ESP32 |
| Architecture | Tensilica Xtensa LX7 |
| CPU Cores | Dual-core Tensilica Xtensa LX7 |
| Clock Speed (MHz) | 240 MHz |
| Flash | 8MB |
| SRAM | 8MB |
| External Memory | 8MB Octal PSRAM |
| USB Ports | Micro-USB |
| Ethernet Support | No |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 3.3V |
| Wireless | Wi-Fi, Bluetooth 5 (LE) |
| IDE Support | Arduino IDE, MicroPython, ESP-IDF |
| Input Voltage (V) | 5V (USB), 3.7V (Battery) |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5 |
