ESP32-Audio-Kit ESP32 Audio Development Board

[DEV-02-005]
Volume discounts:
  • +25 4 % $18.24
  • +50 6 % $17.88
  • +100 8 % $17.52
  • +300 9 % $17.17
  • +500 11 % $16.81
Shop with confidence Learn More
Availability: 105 items
SKU
DEV-02-005
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$18.95

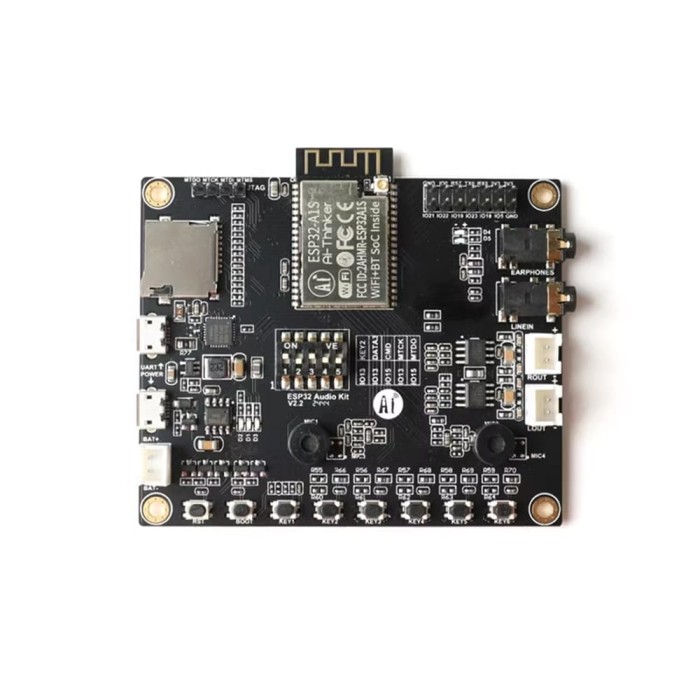

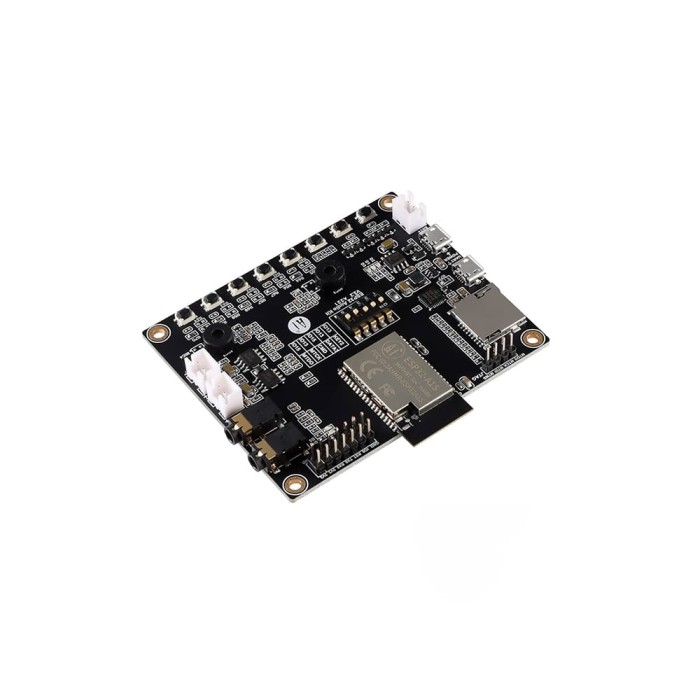

ESP32-Adulo-Kit is a new WiFi Bluetooth dual-mode development board. It uses a PCB on-board antenna and the ESP32-A1S module on the board, which can work independently as a minimum system.

  • Using ESP32 to integrate Wi-Fi, traditional Bluetooth and low-power Bluetooth (BLE Beacon), with two high-performance 32-bit LX6 CPUs, using a 7-stage pipeline architecture, the main frequency adjustment range is 80 MHz to 240 MHz.
  • On-chip Sensors: Hall sensor,temperature sensor, etc.
  • Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or it can be used as a slave to run on other host MCUs to add networking functions to existing devices.
  • ESP32-Audio-Kit can be widely used in various loT scenarios, suitable for home smart devices, smart speaker solutions, children's story machines, etc. It is an ideal solution for loT audio applications.
    Ultra-full-featured 802.11b/g/n WiFi + BT/BLE SOC dual-mode development board.

Specification of ESP32 Audio-Kit:

  • Adopts low-power consumption dual-core 32-bit CPU, which can be used as an application processor
    Main frequency up to 240MHz, computing power up to 600 DMIPS
  • Built-in 520 KB SRAM, 8M PSRAM
  • Support UART/SP1/12C/PWM and other interfaces
  • Supports micro usb serial port input and output, supporting a maximum baud rate of 921600
  • Headphone port: Insert into 3.5mm headphone jack, support left and right channel output
  • Left and right channel speakers: supports 4Q 3W speaker output and supports dual-channel output at the same time
  • Two analog microphones, each used as audio input; supports headphone microphone input
  • Supports 3.7V lithium battery input; supports 5V 2A power input, supports simultaneous lithium battery charging
  • Support 64G SD card reading and writing
  • Supports multiple sleep modes
  • Embedded Lwip and FreeRTOS
  • Support STA/AP/STA+AP working mode
  • Supports Smart Config/AirKiss one-click network configuration
  • Support secondary development
  • Supports 6 channels of key input, with the following factory default access methods:

KEY1->IO36
KEY2->IO13
KEY3->IO19
KEY4->IO23
KEY5->IO18
KEY6->IO5
You can modify circuit button AD input:
Please pull the download button (BOOT) down when downloading. Since 100 provides the codec clock, please do not Press, otherwise it will affect the codec work
Press Reset button (RST) to reset the system
