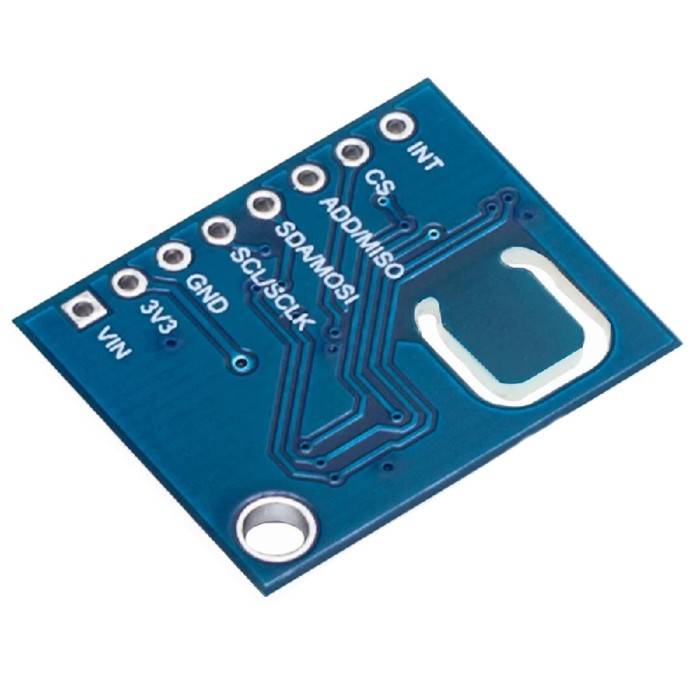

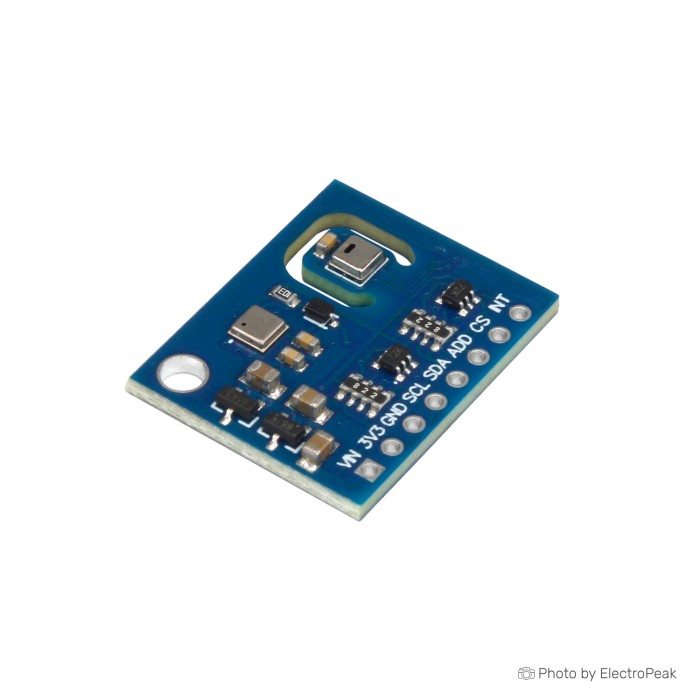

ENS160 and AHT21 CO2, Temperature And Humidity Sensor
$5.5000
In stock
SKU
SEN-16-042
Volume discounts:
- +25 4 % $5.2800
- +50 6 % $5.1700
- +100 8 % $5.0600
- +300 10 % $4.9400
- +500 12 % $4.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PH Value Test Module with Rechargeable Probe and PH-4/PH-9.18 Buffer Solution (Temperature Compensated) Previous
The ENS160 and AHT21 CO2, Temperature, and Humidity Sensor is a highly advanced digital multi-gas sensor specifically designed for indoor air quality testing. The ENS160 optimizes the detection of a wide variety of gases and volatile organic compounds (VOCs) such as toluene, hydrogen, ethanol, NO2, and ozone. This sensor is ideal for use in home and building automation, consumer products, electrical devices, and air purification systems. It provides ease of use, multiple air quality signal options, and easy integration without the need for additional software libraries, making it suitable for fast response systems and robust design implementations.
Specifications of ENS160 and AHT21 CO2, Temperature, and Humidity Sensor
- Detection: Reducing (VOC) and oxidizing gases such as NO2
- Gas Sensors: Supports up to four independent MOX gas sensors
- Control: Integrated sensor measurement and heater drive control
- Algorithm: Integrated pre-calibration sensor fusion and automatic baseline correction algorithm
- Outputs: Multiple IAQ outputs (TVOC, eCO2, AQI)
- Interfaces: I2C and SPI
- CO2 Measurement:
- Measurement Range: Typically 400 to 5000 ppm
- Accuracy: ±(30 ppm + 3% of reading)
- Temperature Measurement:
- Measurement Range: -40°C to 85°C
- Accuracy: ±0.3°C
- Humidity Measurement:
- Measurement Range: 0% to 100% RH (Relative Humidity)
- Accuracy: ±2% RH
- Supply Voltage: 3.3V (VIN support up to 5VDC)
- Dimensions: 4.0 x 4.0 x 1.45 mm
Datasheet of ENS160 and AHT21 CO2, Temperature, and Humidity Sensor
Datasheet ENS160 is a PDF attached
Datasheet AHT21 is a PDF attached
| Interface Type | I2C, SPI |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 24x20mm |
| Output Type | I2C |
| Accuracy | ±(30 ppm + 3% of reading), ±0.3°C, ±2% RH |
| Biometric Parameter | Gas Concentration |
| Application | air purification systems, consumer products, electrical devices, home and building automation, indoor air quality testing |
| Target Gas | CO2, VOCs, Ethanol, Hydrogen, NO2, oxidizing gases, ozone, Reducing (VOC) gases, toluene |
| Detection Range | 400 to 5000 ppm, -40°C to 85°C, 0% to 100% RH |
| Sensor Type | MOX gas sensors |
