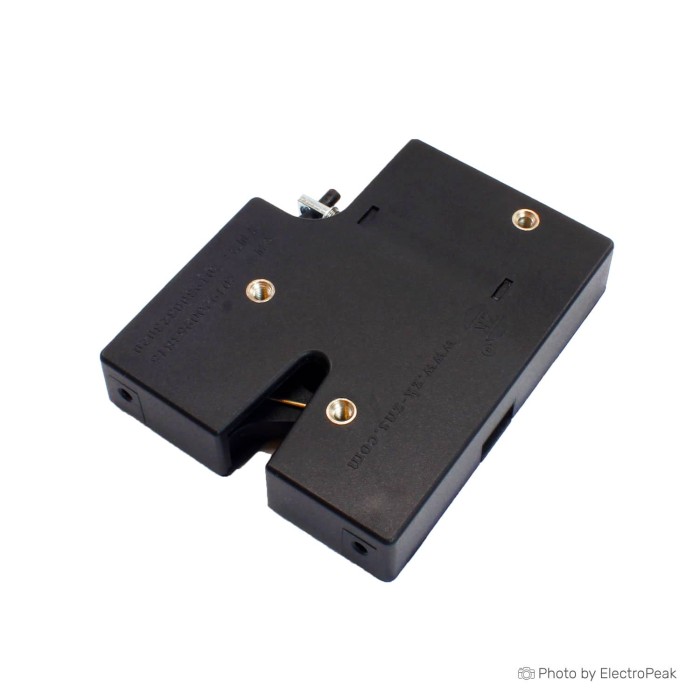

Electromagnetic Cabinet Lock- 5/ 12/ 24V

Description of electromagnetic Cabinet Lock:

This lock can be directly connected to your Access Control System Controller. If you are building your own controller using a custom PLC, Arduino, Raspberry Pi, or any other microcontroller, then you can use one of our compatible relay or MOSFET Modules to control this electromagnet from your microcontroller.

The lock uses an latch which is released by a special alloy wire. The wire contracts when powered and releases the latch to unlock the door!

Applications of electromagnetic Cabinet Lock:

• These products are widely applied in access control system and related applications
• It is especially suitable cabinet, drawer, small type door.
• Can be used in Home Automation Systems
• Used in bank locker, gym locker, vending machine, cabinets, cctv housings, mini refrigirators, etc.
• Mini design, low operational and standby current.

Specifications of electromagnetic Cabinet Lock:

• Voltage : 5V DC, 12V DC, 24V DC (Optional)
• Size: 73x14x60mm
• Power-on time: less than 1 second
• material: ABS plastic
• Lock hook strength: 50kg force
• Self-elastic design: suitable for doors weighing 0.5 ~ 2kg.
• Application: lockers, express cabinets, vending machines, locker, etc.
