E3D V6 Hotend for 3D Printers
SAVE
As low as $2.9500
In stock
Only %1 left
SKU
3DP-01-037
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
High Temperature Insulating Brown Tape Glue Previous

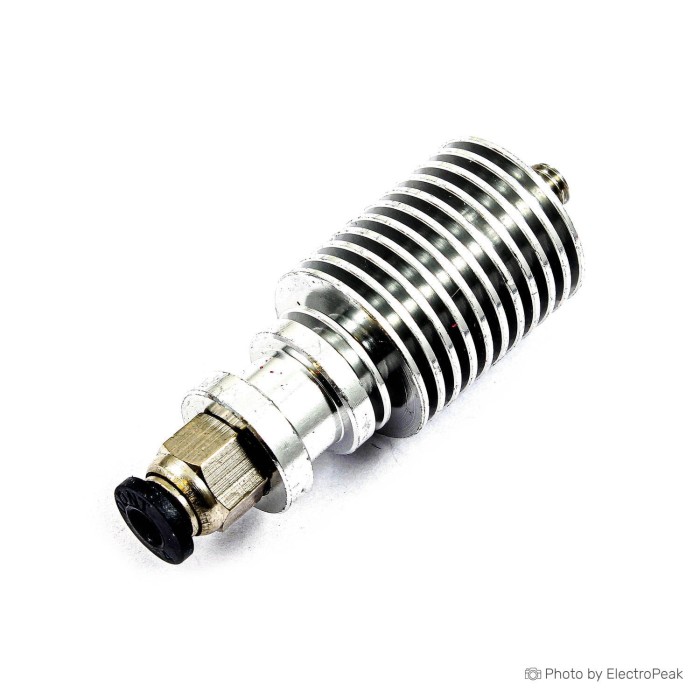

The E3D V6 Hotend for 3D Printers is a key 3D printer hotend for heating and melting filament. It supports controlled filament feeding for producing printed parts. The body is all-metal for use at high temperatures. This version is presented as a long distance model. It is designed for straightforward assembly and maintenance. The hotend includes support for a fan installation and pneumatic fittings.
Features of E3D V6 Hotend for 3D Printers - 12V, 40W
- All-metal body
- Long distance model
- Pneumatic fitting support
- 1.75 mm filament support
- Selectable nozzle diameter
- Fan installation support
- Easy assembly and maintenance
- 12V, 40W heater
- 100K NTC B3950 ±1% thermistor
- High performance and stability
Specifications of E3D V6 Hotend for 3D Printers - 12V, 40W
- Body: All metal
- Type: Long distance
- Pneumatic fittings: Yes
- Filament diameter: 1.75 mm
- Nozzle diameter: Selectable
- Nozzle diameter: 0.4 mm
- Heater: 12V, 40W
- Thermistor: 100K NTC B3950 ±1%
- Fan installation: Yes
- Material: Brass
- Voltage: 12V
- Power: 40W
- Operating temperature: Up to 300 degrees Celsius
- Short distance and long distance types exist
- Fitting or holder installation: Only for long distance type
- Reduced length compared to V5
- Reduced thickness compared to V5
- Reduced weight compared to V5
- Reduced diameter compared to V5
How to Use E3D V6 Hotend for 3D Printers - 12V, 40W
- Install the hotend in the 3D printer assembly.
- Connect the heater, thermistor, and fan as required.
- Load 1.75 mm filament and start printing.
More Info
- The hotend is described as an improved version of V5.
- PTFE liner tube is mentioned as part of the hotend path.
- Flexible filament support is associated with the PTFE liner tube.
