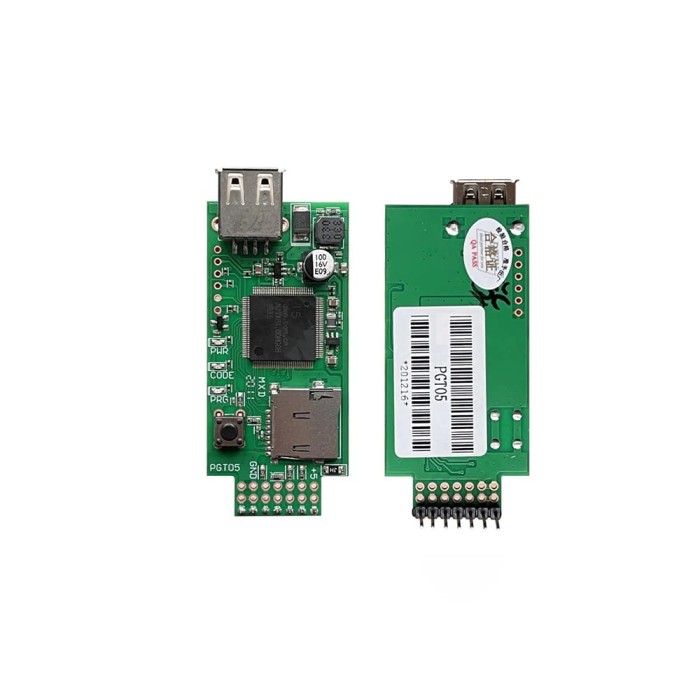

DWIN PGT05 JTAG Burner

[PRO-01-039]
Volume discounts:
  • +25 4 % $8.17
  • +50 6 % $8.01
  • +100 8 % $7.84
  • +300 10 % $7.68
  • +500 12 % $7.52
Shop with confidence Learn More
Availability: 185 items
SKU
PRO-01-039
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$8.50

The DWIN PGT05 JTAG Burner is a versatile and powerful tool for programming and debugging microcontrollers. With its JTAG interface and USB connectivity, this burner offers fast and efficient programming for a variety of microcontrollers. It also has a compact and user-friendly design, making it suitable for both beginners and professionals.

Equipped with advanced programming algorithms, the DWIN PGT05 JTAG Burner offers reliable and accurate programming for various microcontroller brands and models. It also has built-in protection features to prevent damage to the microcontroller during programming. With its affordable price and practical functionality, this burner is a top choice for microcontroller enthusiasts and developers. Upgrade to the DWIN PGT05 JTAG Burner and streamline your microcontroller programming process.

Specification of DWIN PGT05 JTAG Burner:

• Versatile and powerful JTAG burner tool
• JTAG interface and USB connectivity
• Fast and efficient programming
• Compact and user-friendly design
• Advanced programming algorithms
• Reliable and accurate programming for various microcontrollers
• Built-in protection features
• Affordable price
• Suitable for beginners and professionals
• Streamlines the microcontroller programming process.

Interface of DWIN PGT05 JTAG Burner:

  • VCC : Power input
  • TMS – Mode selection
  • TCK – Clock
  • TDI input
  • TDO : Output
  • GND : GND
  • GND : GND
  • Burn start button- PRG -/Burn success indicator- CODE – /Burning status light – RWR – /Power indicator

Kernel burning operation process:

  1. Connect a 5V power supply and press the pin on the product’s programming hole to ensure a normal connection; Note: When programming a screen with a large backlight power consumption, you need to unplug the backlight of the screen first to avoid the inability to burn due to insufficient power supply.
  2. Press the programming start button once, the status indicator light will stop flashing, and the programming success indicator will light up to complete. Note: If the burning status light stops flashing and the burning success indicator does not light up, it means that the burning has failed. Please check the connection and operate again.

Update kernel file operation process:

  1. Copy the kernel file to the DWIN_SET folder in the root directory of the TF card. The kernel program name must be changed to T5UIC1V10.BIN to support the update;
  2. Insert the TF card into the TF card slot of the writer;
  3. Turn on the 5V power supply and wait for about 2 seconds after the update is completed, the flashing status light flashes once, and the flashing success indicator lights up to complete.     Note: If the burning status indicator flashes once and the burning success indicator does not light up, it means that the update has failed, and you need to check and operate again

Download Datasheet DWIN PGT05 JTAG 7 Pin Burner/Adapter Board
