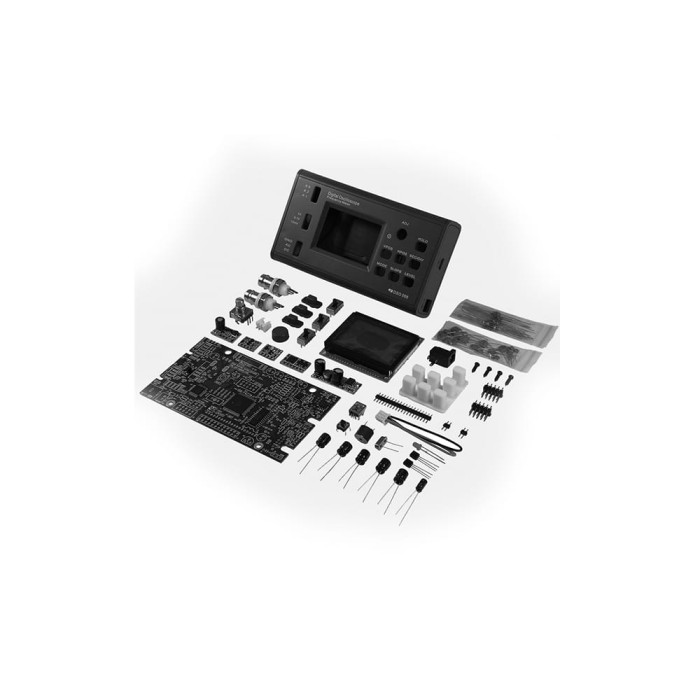

DSO 068 Oscilloscope DIY Kit

The DSO 068 Oscilloscope DIY Kit is a versatile and affordable kit for building your own oscilloscope. With its easy-to-follow instructions and components, this kit allows for a fun and educational DIY experience. It also has a compact and user-friendly design, making it suitable for anyone interested in electronics and DIY projects.

Equipped with a 2.8-inch TFT LCD screen and 1Msps sampling rate, the DSO 068 Oscilloscope provides accurate and detailed waveform display for your projects. It also has various functions, such as FFT, triggering modes, and more, making it a practical tool for electronic enthusiasts, students, and professionals. With its affordable price and practical functionality, this kit is a top choice for anyone looking to build their own oscilloscope. Upgrade to the DSO 068 Oscilloscope DIY Kit and unleash your creativity and knowledge in electronics.

Specification of DSO 068 Oscilloscope DIY Kit

• Analog bandwidth: 0 – 3MHz

• Sampling rate: 2Msps max

• Sensitivity: 10mV/Div – 5V/Div

• Timebase: 0.5us/Div – 10 minute/Div

• Record length: up to 1024 points

• Built-in test signal source with variable frequecy

• Can work as USB scope (with jyeLab software)

• Save/recall waveform

DSO 068 Oscilloscope Parameters:

• Vertical

  • Number of Channel: 1

  • Analog Bandwidth: 0 - 3MHz

  • Sensitivity: 10mV/Div -- 5V/Div

  • Resolution: 8-bit

  • Input Impedance: 1M ohm

  • Maximum Input voltage: 50Vpk (for 1X probe) and 400Vpk (for 10X probe)

  • Coupling: DC, AC, GND

• Horizontal

  • Max Real-time Sampling Rate: 2MSps

  • Max Equivalent-Time Sampling Rate:

  • Timebase: 0.5us/Div - 10m(minute)/Div

  • Record Length: 256, 512, and 1024 variable

  • Run/Hold Modes: one button switchable

• Trigger

  • Trigger Modes: Auto, Normal, Single

  • Trigger Types: Rising/falling edge

  • Trigger Position: 0% - 100% of capture buffer adjustable

  • Trig Point Indicator: Yes

• Test Signal Generator

  • Frequency adjustable from 1Hz - 100KHz (41 frequencies)

  • Amplitude adjustable among 0.3V, 1V, 3V, and 5V

• Additional Features

  • Save captured waveform to EEPROM and recall after power outage

  • Upload screen display as bitmap file

  • Upload waveform as CSV file

  • USB connection for data transfer and firmware upgrade

  • Rotary encoder for quick parameter setting

• Display

  • 2-inch 128 X 64 black-and-white dot-matrix LCD

  • Backlight ON/OFF control

  • Contrast adjustable

• Power Supply

  • 3.7V Li-ion battery/USB

  • Supply Current: 300mA @ 3.7V(LCD backlight ON, typical)

  • Built-in charger

• Physical

  • Dimension: 140mm X 70mm X 30mm

  • Weight: 120 gram (not including battery and probe)
