250V AC 20A 6 Feet Double Rocker Switch - Red Light

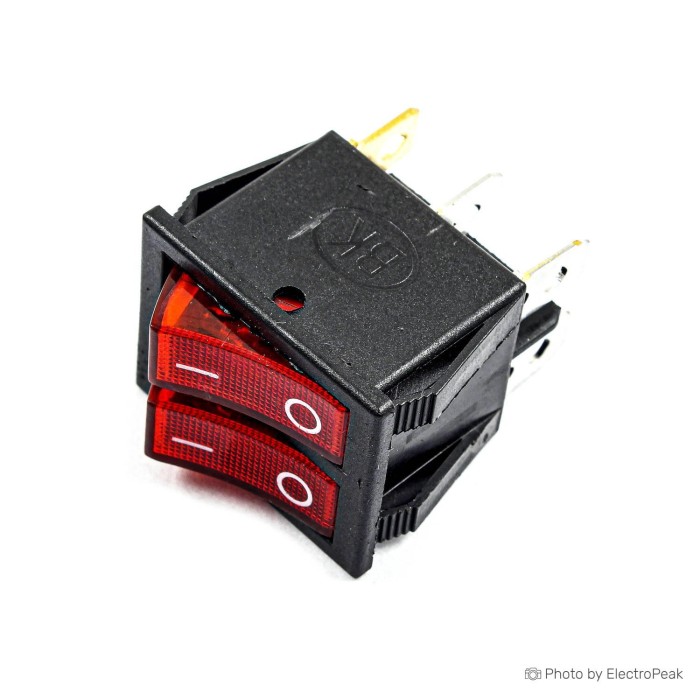

250V AC 20A 6-Pin Double Rocker Switch - Red Light is a rocker switch for manual circuit control. It provides ON and OFF operation with a clear illuminated indicator. The switch is designed with 6 pins and a red light. It is rated for 250V AC and 20A. The operating temperature range is -25 to +85 degrees Celsius. Endurance is listed at 5000 cycles. Insulation resistance is 100 m ohm. Contact resistance is 50 m ohm. Each package contains 5 pieces.

Features of 250V AC 20A 6-Pin Double Rocker Switch - Red Light

• ON and OFF switching
• Illuminated red light
• 6-pin design
• 250V AC rating
• 20A current rating
• 5000-cycle endurance

Specifications of 250V AC 20A 6-Pin Double Rocker Switch - Red Light

• Rated voltage: 250V AC
• Rated current: 20 A
• LED color: red
• 6 pins
• Working temperature: -25 to +85
• Endurance: 5000 cycles
• Insulation resistance: 100m ohm
• Contact resistance: 5m ohm
• Contact resistance: 50 m ohm
• Package quantity: 5 pieces

How to Use 250V AC 20A 6-Pin Double Rocker Switch - Red Light

1. Connect the switch according to the 6-pin layout.
2. Use the rocker position to open or close the circuit.
3. Check the red light for switching status.

More Info

• Manual electro-mechanical rocker switch
• Suitable for circuit control applications
• Package includes 5 pieces
