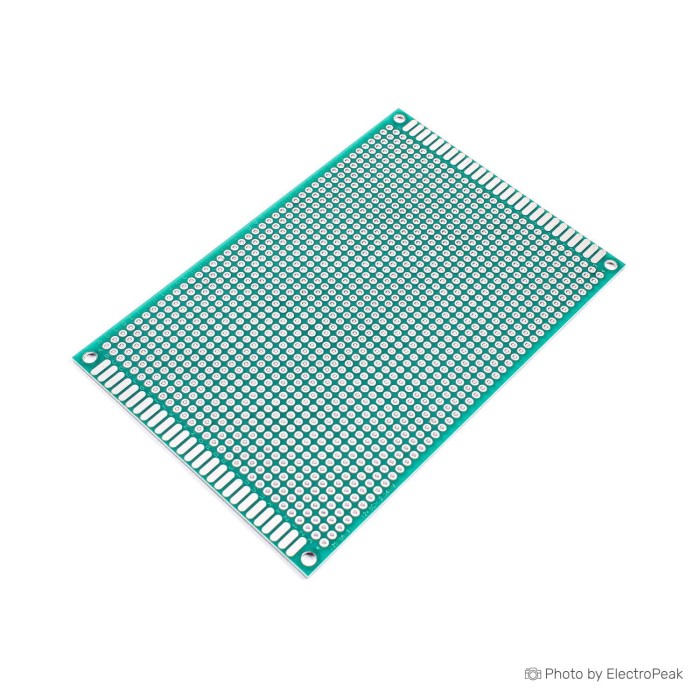

Double Sided Prototype PCB Circuit Universal Board 8cm x 12cm
|+100 11 % $1.58|
|+300 14 % $1.52|
|+500 18 % $1.45|
|+1000 21 % $1.39|
Double Sided Prototyping PCB Board package contains of a rectangle of the thin flexible PCB that is fully punched with holes of 1mm diameter in 2.54mm distance between them (hole pitch=2.54). This board can be soldered to keep the electronic parts such as DIP, and SMD component and their wire connections. This board is made of high-quality fiberglass PCB material that is rigid without bending and folding capability, so this board is presented in 7 optional sizes of 30mm x 70mm, 60mm x 80mm, 70mm x 90mm, 80mm x 120mm, 90mm x 150mm, 20mm x 80mm, and 50mm x 70mm, that 70mm x50mm is the reference. Besides the pinholes, some solder pad is provided in the 2 edges of the board. The prototype board is provided in two types of single side and double sideboard. The single sideboard has pin copper shape just on the single side of the board so the electronic component and wire can be soldered and mounted on the same side. The pins copper holes are made on the two sides of The dual side or double side-board and the electronic component can be soldered and mounted on each side of the board.
This flexible PCB can widely be used for prototyping purpose.
Material: fiber glass PCB
Type: Double side
Hole Diameter: about 1mm
Hole pitch: standard 2.54mm
For point to point DIY soldering
Points: 10x24 (3x7cm) , 22x27 (6x8cm) , 26x31 (7x9cm) , 30x42 (8x12cm) , 34 x 54 (9x15cm) , 6 x 28 (2x8cm) , 18x24 (5x7cm)
Size: 30mm x 70mm , 60mm x 80mm , 70mm x 90mm , 80mm x 120mm , 90mm x 150mm , 20mm x 80mm , 50mm x 70mm (Optional)
