Universal PCB Prototype Board - Double Sided, 2x8cm - Pack of 5

[ELC-10-003]
Rating:
100 % of 100
Volume discounts:
  • +100 7 % $0.42
  • +500 11 % $0.40
  • +1000 16 % $0.38
  • +5000 20 % $0.36
  • +10000 22 % $0.35
Shop with confidence Learn More
Availability: 4260 items
SKU
ELC-10-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.45

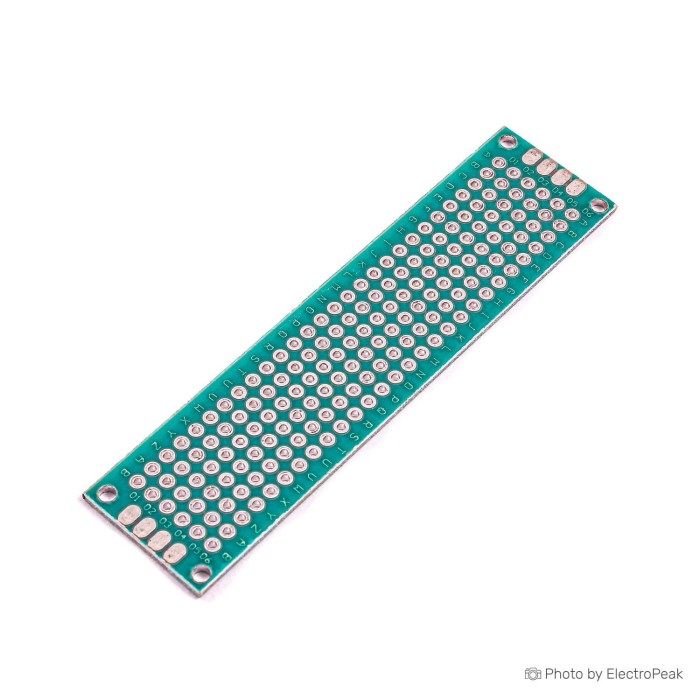

The Universal PCB Prototype Board is an essential tool for electronics prototyping and DIY circuit design. Each board in this pack of 5 is double-sided, providing copper traces on both the top and bottom surfaces. These boards are made from high-quality and durable fiberglass material, making them ideal for soldering components, including resistors, capacitors, transistors, and more.

With a grid of plated through-holes and a standard 2.54mm hole pitch, these boards are compatible with a wide range of electronic components and integrated circuits (ICs) with dual in-line packages (DIP). You can easily create and test your electronic circuits by soldering components onto these boards and making connections using wires or jumper wires.

These prototype boards are commonly used for building and testing small to medium-sized electronic projects, custom circuits, and prototypes. They are a valuable resource for hobbyists, makers, and engineers who want to bring their electronic designs to life.

Specificatoins of Universal PCB Prototype Board - Double Sided, 2x8cm:

  • Type: Universal PCB Prototype Board
  • Sided: Double-sided (has copper traces on both sides)
  • Size: Approximately 2cm x 8cm (20mm x 80mm)
  • Material: High-quality, durable fiberglass material with a copper-clad surface for easy soldering.
  • Holes: Grid of plated through-holes for component mounting and soldering.
  • Hole Pitch: Typically 2.54mm (0.1-inch) standard pitch, which is compatible with most electronic components and DIP ICs.
  • Hole Diameter: about 1mm
  • Thickness: 1.6mm
  • Quantity: Sold as a pack of 5 boards.

Features of Universal PCB Prototype Board - Double Sided, 2x8cm:

  • Double-Sided Design: Copper traces on both sides allow for more complex circuit designs and compact layouts.
  • Durable Material: High-quality fiberglass material ensures durability and resistance to heat during soldering.
  • Versatile Hole Pitch: The standard 2.54mm hole pitch accommodates a wide range of components and DIP ICs.
  • Usage Tip:
  • Use these PCB prototype boards with care, especially when soldering delicate or heat-sensitive components. Plan your circuit layout carefully before soldering to ensure efficient use of board space.
  • Caution:
  • Exercise caution when soldering to prevent accidental solder bridges or overheating of the board. Ensure proper ventilation when soldering to avoid inhaling fumes
