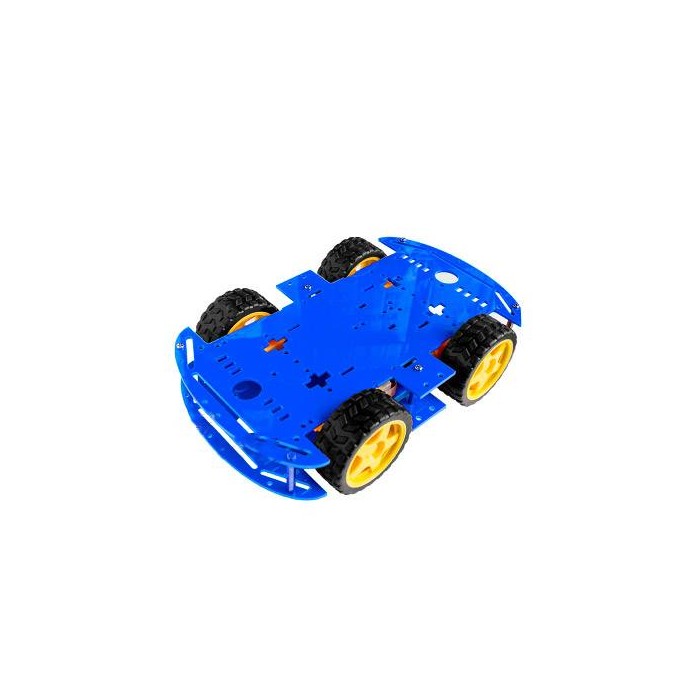

Double Layer Car Chassis with 4pcs Wheels and Motor

This is a Longer version of 4 wd double-layer smart car chassis. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle.

Regarding the motor parameters: By default, we choose a reduction ratio of 48:1, and the actual speed measured by the code wheel (48:1 strong magnetic motor) is about 0.65M/S when powered by a 7.2V rechargeable battery. This speed is good (applicable to most smart car applications). Of course, increasing the driving voltage can increase its speed. The recommended working voltage of the motor is between 5-10V.

Features

• Very handy and simple in assembling/disassembling.
• Strong components to withstand extreme terrain conditions.
• Transparent Car Chassis.
• Attractive design.
• Double-layer structure, much of mounting holes, enough space
• Easy to install a variety of control panels, sensors
• Aplications

• robot for distance sensing
• Obstacle Avoidance
• Line follower
• Flame Detector
• Speed Tester
• Wireless remote controlled Car
• Educational toys
• Ideal for the DIY platform

Specifications

For BO Motor:

• Operating Voltage: 3V~6V DC
• Gear Ratio 1:48
• No-load speed(5V): about 208RPM
• Rated Torque: 0.8 Kg.cm @ 5V
• Load current: 170mA (when it is 4.5V)
• Size: 70 x 23 x 18 mm
• Weight:28g
• Shaft Length: 10 mm
• Shaft Type: 6 mm, Double-D
• The width of the trolley is 155MM outside the distance between two wheels
• The length of the trolley is 260MM
