Digital LCD display Water flow sensor with flowmeter
$31.5000
In stock
SKU
SEN-20-051
Volume discounts:
- +10 4 % $30.2700
- +25 6 % $29.6500
- +50 8 % $29.0400
- +100 10 % $28.4200
- +300 12 % $27.8000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

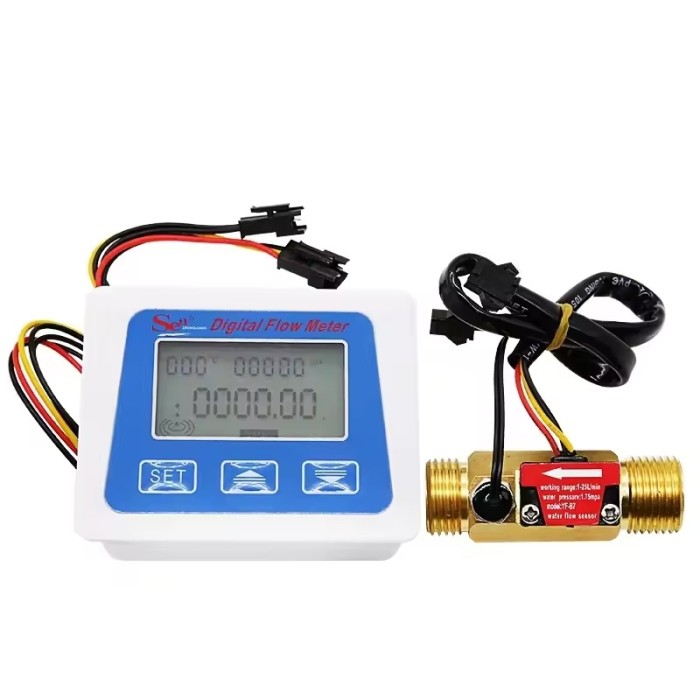

Digital LCD Water Flow Sensor With Flowmeter - G1/2 measures and displays real-time flow rate, temperature, total water usage, and usage time. It is designed for G1/2 pipes and supports automatic switching between flow and time display. The unit includes a sleep mode for lower power use and adjustable K value settings for calibration. The LCD interface also shows battery status for clear monitoring.
Features of Digital LCD Water Flow Sensor With Flowmeter - G1/2
- Real-time flow display
- Temperature display
- Total water usage display
- Usage time display
- Automatic flow and time switching
- Sleep mode support
- Adjustable K value calibration
- Battery status display
Specifications of Digital LCD Water Flow Sensor With Flowmeter - G1/2
- Flow range: 1–25 L/min
- Water pressure resistance: >1.75MPa
- Operation Voltage: 3 × AAA batteries (not included)
- Operation Current: <0.2mA (micro-current control)
- Display temperature range: -99°C to 999°C (°F/°C switchable)
- Flow rate units: LPM (Litres/min), GPM (Gallons/min)
- Total water usage: Up to 999999L
- Interface: LCD with temperature, flow rate, total usage, and battery status
- Reset function: Short-circuit reset contact for factory reset
- Dimensions: 66x55x20mm
How to Use Digital LCD Water Flow Sensor With Flowmeter - G1/2
- Power the device using 3 AAA batteries.
- Install it on a G1/2 pipe.
- Use the flow display during water movement.
- Use the time display when water is not flowing.
- Use the buttons to switch between °C/°F and LPM/GPM.
- Access K value settings with SET for calibration.
- Short the RESET contacts for 2 seconds to restore factory settings.
More Info
- Datasheet: Not available
| Operating Voltage (V) | 4.5V (3 x AAA Batteries) |
|---|---|
| Operating Current (mA) | <0.2mA |
| Operating Temp (°C) | -99°C to 999°C |
| Dimensions (mm) | 66x55x20mm |
| Display Type | LCD |
| Input Type (AC/DC) | DC |
