DD8024TA DC-DC Step Down Power Supply Module
SAVE
As low as $6.5000
In stock
Only %1 left
SKU
BAT-02-193
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XL7015 DC-DC Step Down Power Supply Module -Buck Converter Previous

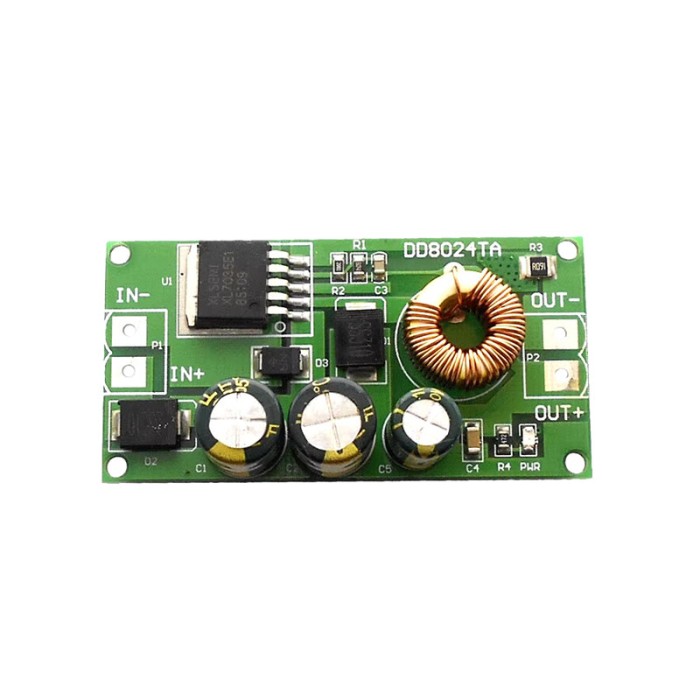

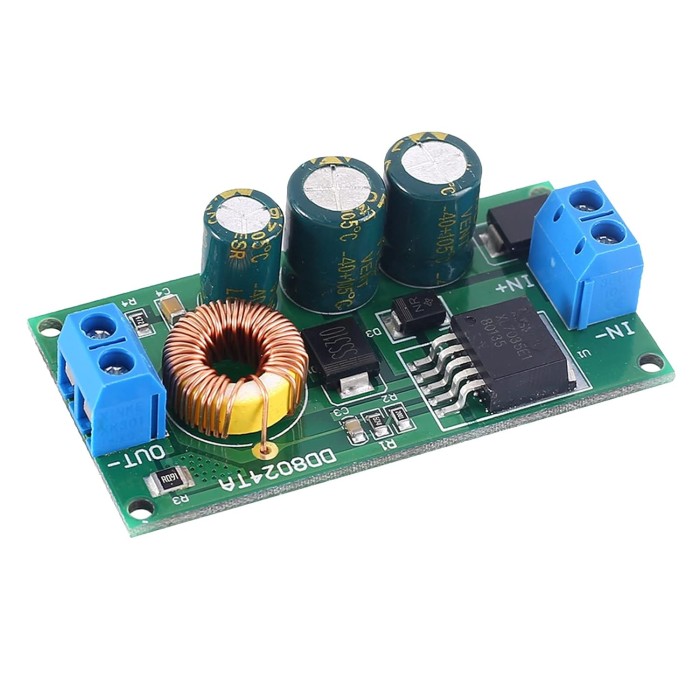

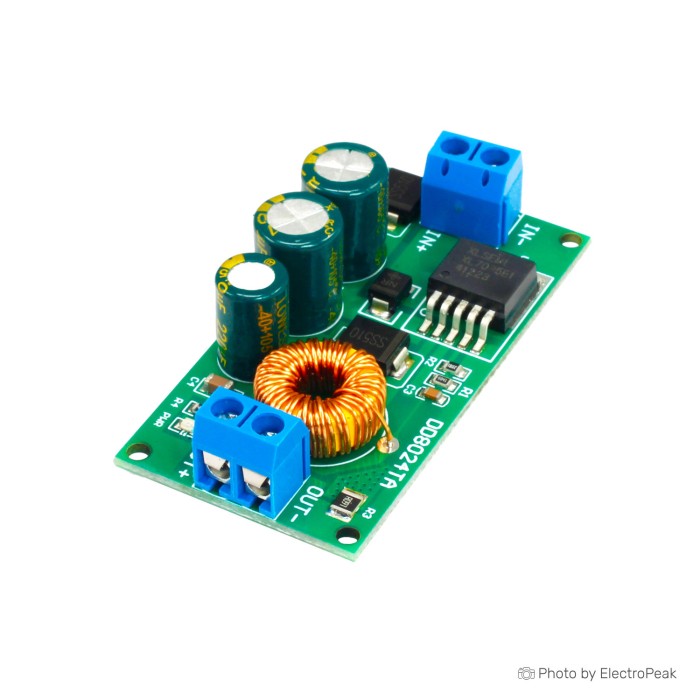

The DD8024TA DC-DC Step Down Power Supply Module converts higher input voltages into stable lower output voltages. It supports multiple output voltage options and is designed for regulated power conversion. The module includes input reverse connection protection, overcurrent protection, over-temperature protection, and short circuit protection. It offers a maximum conversion efficiency of 85%. This power supply module is suitable for applications that require selectable output voltages and compact DC-DC conversion.
Features of DD8024TA DC-DC Step Down Power Supply Module
- Step-down voltage conversion
- Multiple output voltage options
- Input reverse connection protection
- Overcurrent protection
- Over-temperature protection
- Short circuit protection
- High conversion efficiency
Specifications of DD8024TA DC-DC Step Down Power Supply Module
- Input Voltage: 10V~80V (Input must be at least 2V greater than output)
- Output Voltage Options: 3.3V, 5V, 6V, 9V, 12V, 15V
- Output Current: 1A (for voltages under 6V); 0.75A (for voltages above 9V)
- Frequency: 150KHz
- Maximum Conversion Efficiency: 85%
- Static Operating Current: 2.5mA
- Operating Temperature: -40°C to +85°C
- Dimensions: 59x30x16mm
How to Use DD8024TA DC-DC Step Down Power Supply Module
- Connect the input supply within the specified voltage range.
- Select an output voltage option that matches your application.
- Verify the load requirements before operation.
- Use the module within the specified operating temperature range.
More Info
- Compact DC-DC power supply module
- Suitable for regulated step-down voltage conversion
