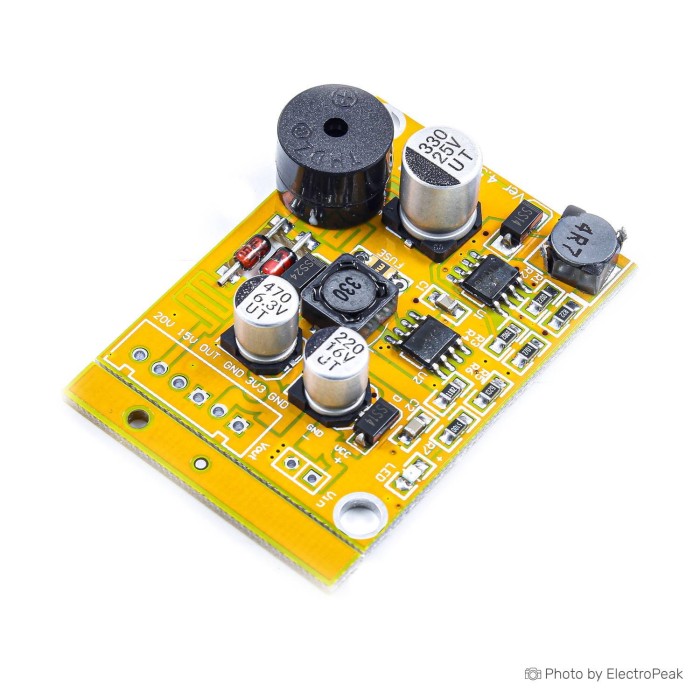

DC-DC Power Supply Module, 7-12V Input to 3.3/15/20V Output
$5.2500
In stock
SKU
BAT-02-056
Volume discounts:
- +25 4 % $5.0200
- +50 6 % $4.9100
- +100 9 % $4.8000
- +300 11 % $4.6800
- +500 13 % $4.5700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DC/DC Step-Up Regulator Module - 150W Previous
DC-DC Power Supply Module provides regulated DC output from a 7-12V input. It is designed with multiple output options and listed output efficiency values for each mode. The module also includes short circuit protection on the 3.3V output. Its compact 34 x 50 mm size makes it suitable for electronics and power supply applications.
Features of DC-DC Power Supply Module - 7-12V Input, 3.3V/15V/20V Output
- 7-12V input range
- 300KHz working frequency
- 3.3V, 15V, and 20V outputs
- Short circuit protection on 3.3V output
- Compact module size
Specifications of DC-DC Power Supply Module - 7-12V Input, 3.3V/15V/20V Output
- Input voltage: 7-12V
- Working frequency: 300KHz
- Output: 3.3V / 1.5A
- Efficiency: 89.6%
- Output: 15V / 250mA
- Efficiency: 75.3%
- Output: 20V / 250mA
- Efficiency: 83.2%
- Short circuit protection: 3.3V short circuit
- Automatic input current limit: 300mA
- Dimensions: 34 x 50 mm
How to Use DC-DC Power Supply Module - 7-12V Input, 3.3V/15V/20V Output
- Apply a 7-12V input to the module.
- Select the required output voltage.
- Connect the load to the output terminals.
More Info
- Suitable for DC-DC power conversion tasks.
- Includes multiple output voltage options.
