10-60V DC 20A PWM Motor Speed Control Module
$1.7500
In stock
SKU
MTR-09-020
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5500
- +1000 14 % $1.5000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MX1508 1.5A Dual-Channel Stepper/DC Motor Driver Module Previous

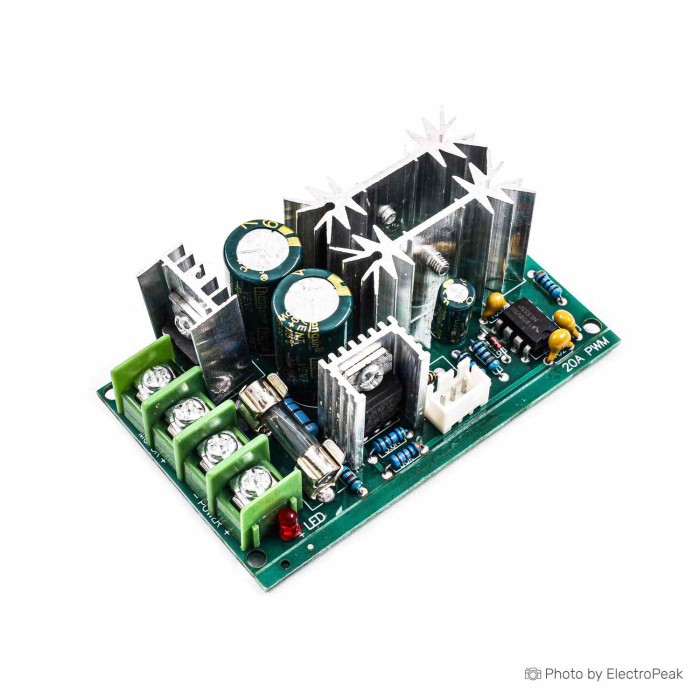

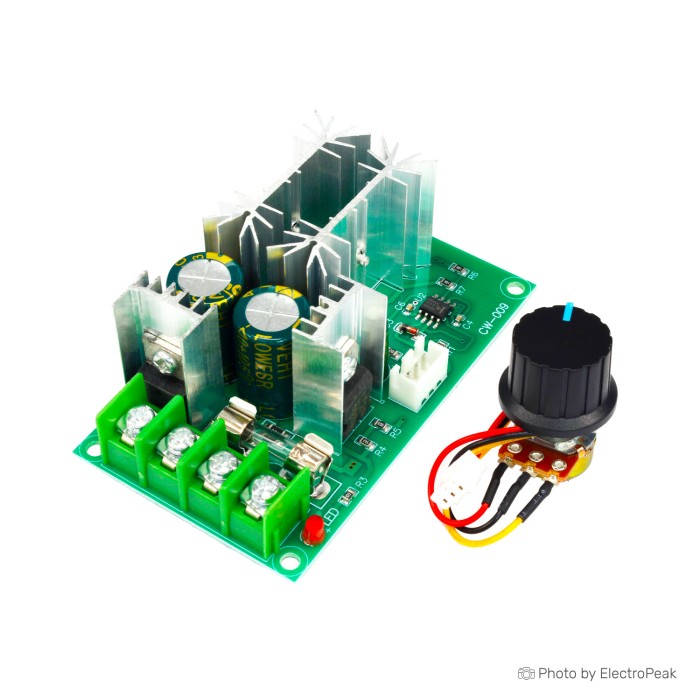

The 10-60V DC 20A PWM Motor Speed Control Module provides PWM-based speed control for DC motors and other adjustable-load applications. It operates across a 10-60V DC input range and supports up to 20A output current. The speed setting is adjusted with a linear potentiometer, and the control method uses PWM. The speed range is 0-100% of rated speed, making it suitable for precise adjustment within the stated range. The control frequency is 15 kHz. Module size is 77x45x28 mm, and weight is 80 g.
Features of 10-60V DC 20A PWM Motor Speed Control Module
- PWM speed control
- 10-60V DC input range
- 0-20A output current
- Linear potentiometer adjustment
- 0-100% speed range
- 15 kHz control frequency
Specifications of 10-60V DC 20A PWM Motor Speed Control Module
- Input voltage: 10-60V DC
- Output current: 0-20A
- Speed adjustment mode: Linear potentiometer
- Speed control type: PWM
- Speed range: 0-100% of rated speed
- Control frequency: 15 kHz
- Module size: 77x45x28 mm
- Weight: 80 g
- Output voltage: Load Linear
- Continuous power: 1200W
- Speed type: adjusting flow
- Connection type: Barrier Terminal Block
- Knob: 097 (0-100% speed)
- Dual power tube design
How to Use 10-60V DC 20A PWM Motor Speed Control Module
- Connect the DC input within the 10-60V range.
- Wire the load through the barrier terminal block.
- Adjust the linear potentiometer to set the speed.
More Info
- Suitable for DC motor speed control.
- Uses PWM for adjustable output.
- Provides up to 1200W continuous power.
| Weight (g) | 80 |
|---|
