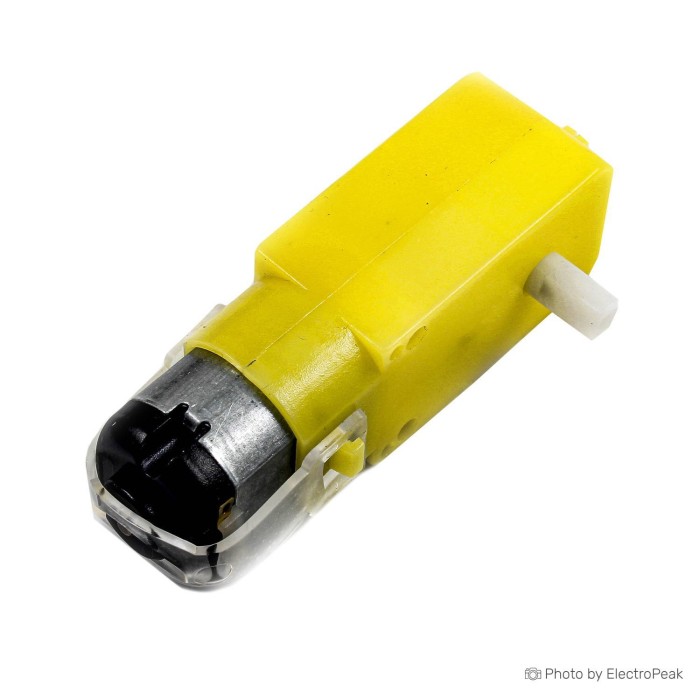

Single Axis TT DC Gear Motor - 1:120, 3-6V
$0.7900
In stock
SKU
MTR-02-025
Volume discounts:
- +50 5 % $0.7500
- +100 9 % $0.7200
- +300 11 % $0.7000
- +500 14 % $0.6800
- +1000 16 % $0.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Single Axis TT DC Gear Motor - 1:90, 3-6V (Metal Shaft) Previous
The Single Axis TT DC Gear Motor is a DC geared motor with an integrated gearbox for reduced speed and increased torque. It operates on 3 to 6V DC and is suitable for robotics and small mechanical projects. The motor can be used with Arduino, microcontrollers, and motor drivers. It provides low-speed, high-torque operation through a 1:120 gear ratio.
It is a compact single-shaft geared motor designed for DC control applications. The motor supports different performance levels at 3V and 6V. Use it where a geared motor with defined voltage, current, speed, and torque values is required.
Features of Single Axis TT DC Gear Motor - 1:120, 3-6V
- Single-shaft output
- Integrated gearbox
- 1:120 gear ratio
- 3 to 6V DC operation
- Suitable for Arduino and microcontrollers
Specifications of Single Axis TT DC Gear Motor - 1:120, 3-6V
- Input voltage: 3 to 6V DC
- Gear ratio: 1:120
- Current at 3V: Less than 180mA
- Current at 6V: Less than 250mA
- Speed at 3V: About 45 RPM (±10%)
- Speed at 6V: About 90 RPM (±10%)
- Torque at 3V: About 0.45 kgf·cm (±10%)
- Torque at 6V: About 0.85 kgf·cm (±10%)
- Voltage: DC3-6V
- Voltage no-load current no-load speed
- At 3V: ≤ 170mA and 55 ±10% rpm
- At 6V: ≤ 250mA and 115±10% rpm
- Dimensions: ---
How to Use Single Axis TT DC Gear Motor - 1:120, 3-6V
- Apply a DC supply within the 3 to 6V range.
- Connect the motor to a suitable driver or control circuit.
- Integrate it with your robotics or mechanical setup.
More Info
- Gear reduction is built in.
- Performance values vary by supply voltage.
- Single-axis motor form factor.
