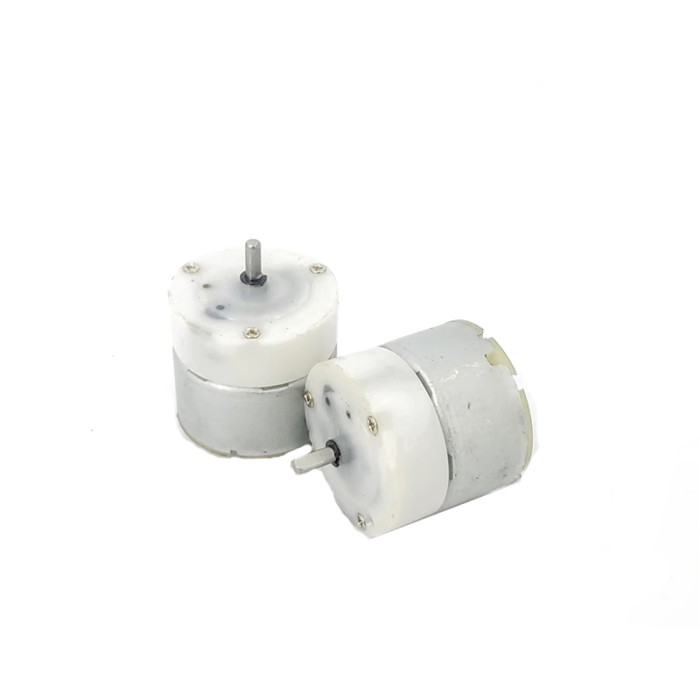

DC Gear Motor 500

DC Gear Motor 500 is a DC reduction motor with all-metal gears for forward and reverse rotation. It operates over a 3V to 12V voltage range and supports speed variation by changing the applied voltage. The motor is suitable for robotics, DIY electronics, automation systems, and laboratory applications. Its compact structure includes the motor body, gearbox, and shaft dimensions listed below. The DC Gear Motor 500 is designed for applications that require motor control and adjustable rotation speed.

Features of DC Gear Motor 500

• Forward and reverse rotation
• All-metal gear construction
• 3V to 12V operation
• Speed changes with voltage
• Compact gear motor design

Specifications of DC Gear Motor 500

• Model: 500 reduction motor (all metal gear)
• Type: DC reduction motor
• Voltage Range: 3V-12V
• Starting Current: 6V-34mA
• Applicable Voltage: DC3V-12V (3V-32 turn, 6V-65 turn, 12V-130 turn)
• Motor Dimensions: 32x17mm (Radius x Height)
• Gearbox Dimensions: 32x11mm (Radius x Height)
• Shaft Length: 7.6mm
• Total Dimensions (with shaft): 32x42.45mm (Radius x Height)

How to Use DC Gear Motor 500

1. Connect the power supply to the motor terminals for forward rotation.
2. Swap the positive and negative connections to reverse the rotation.

More Info

• Applications include robotics, DIY electronic devices, automation systems, and laboratory use.
• Speed values are listed for 3V, 6V, and 12V operation.
