DC/DC Step-Down Regulator Module - 5A
SAVE
As low as $3.5000
In stock
Only %1 left
SKU
BAT-02-151
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

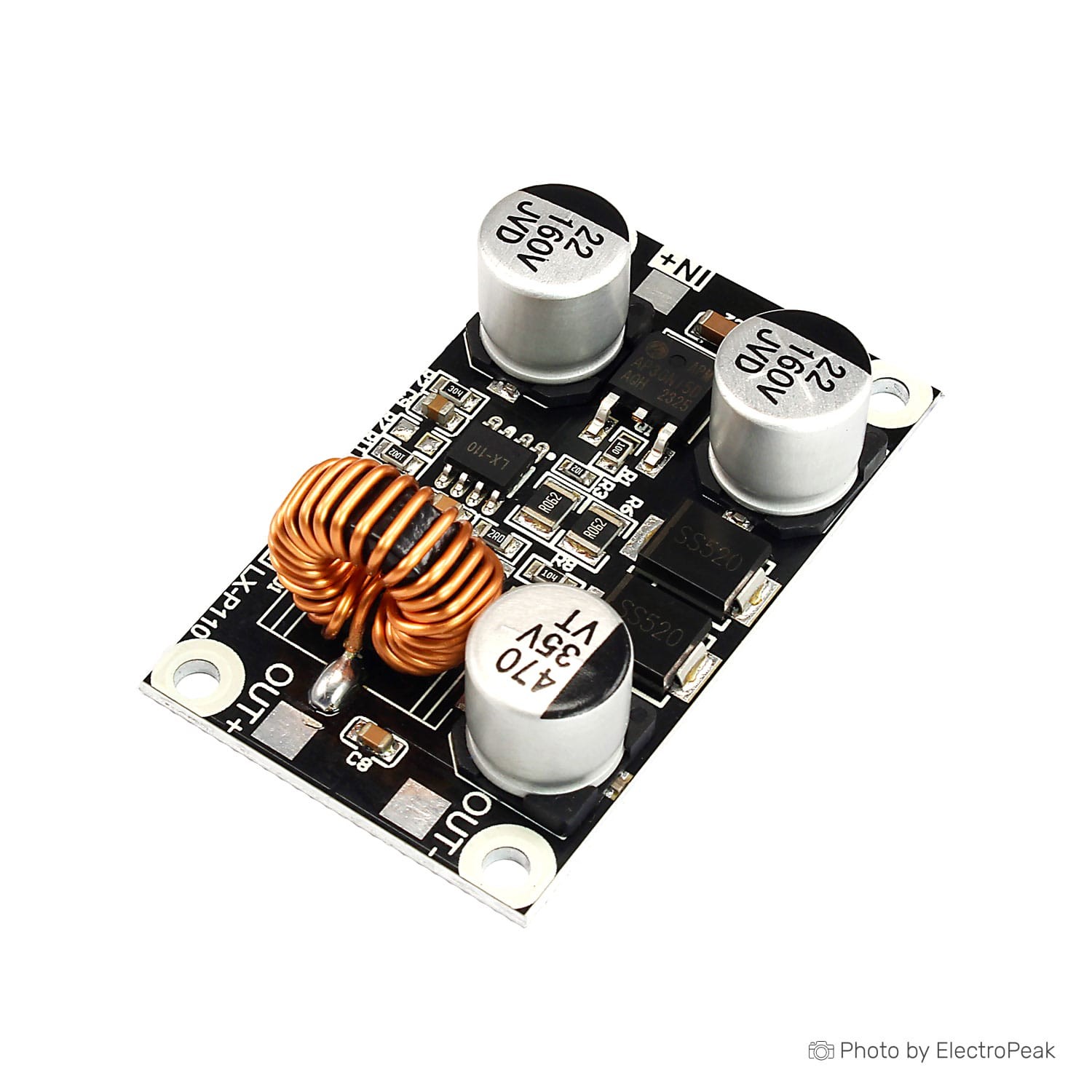

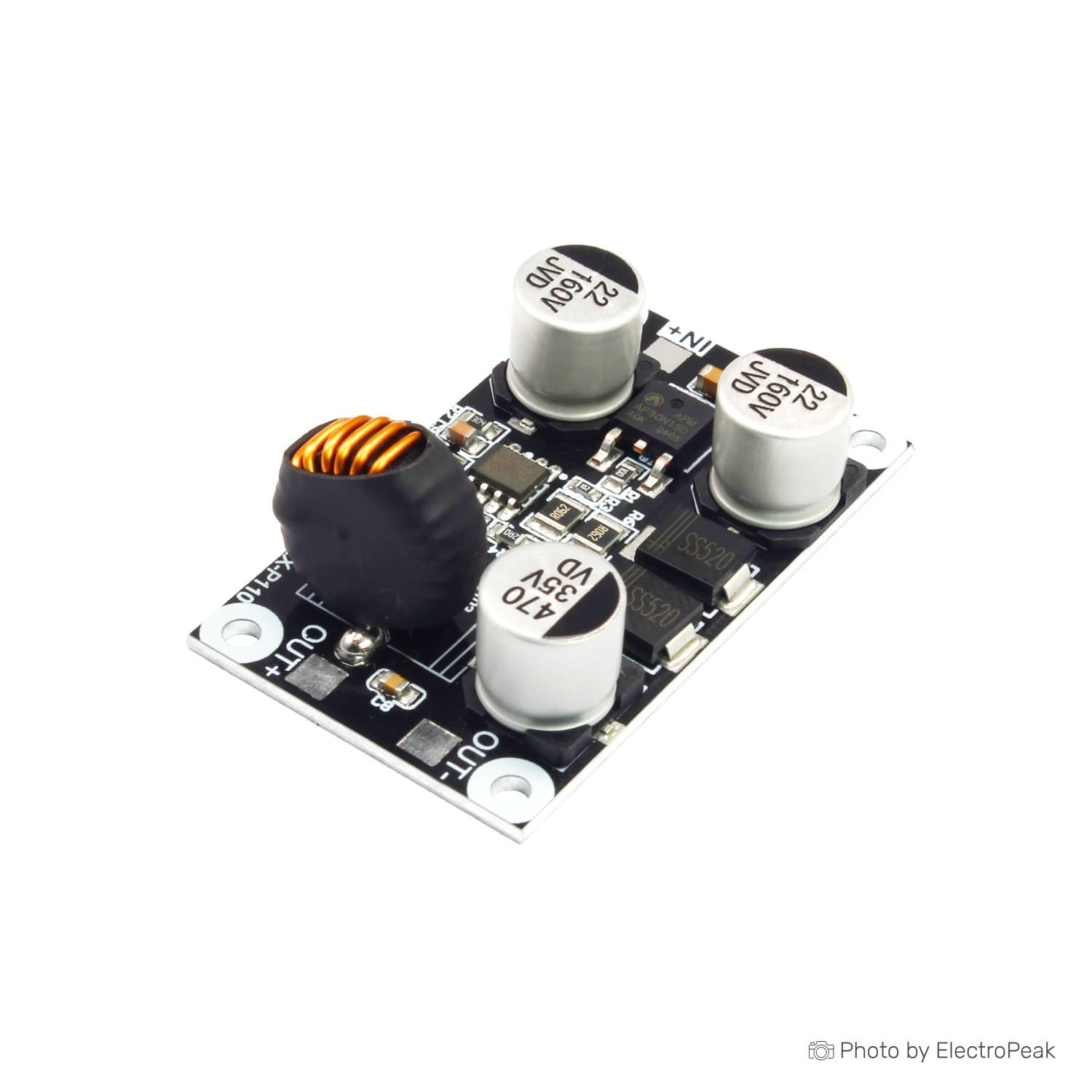

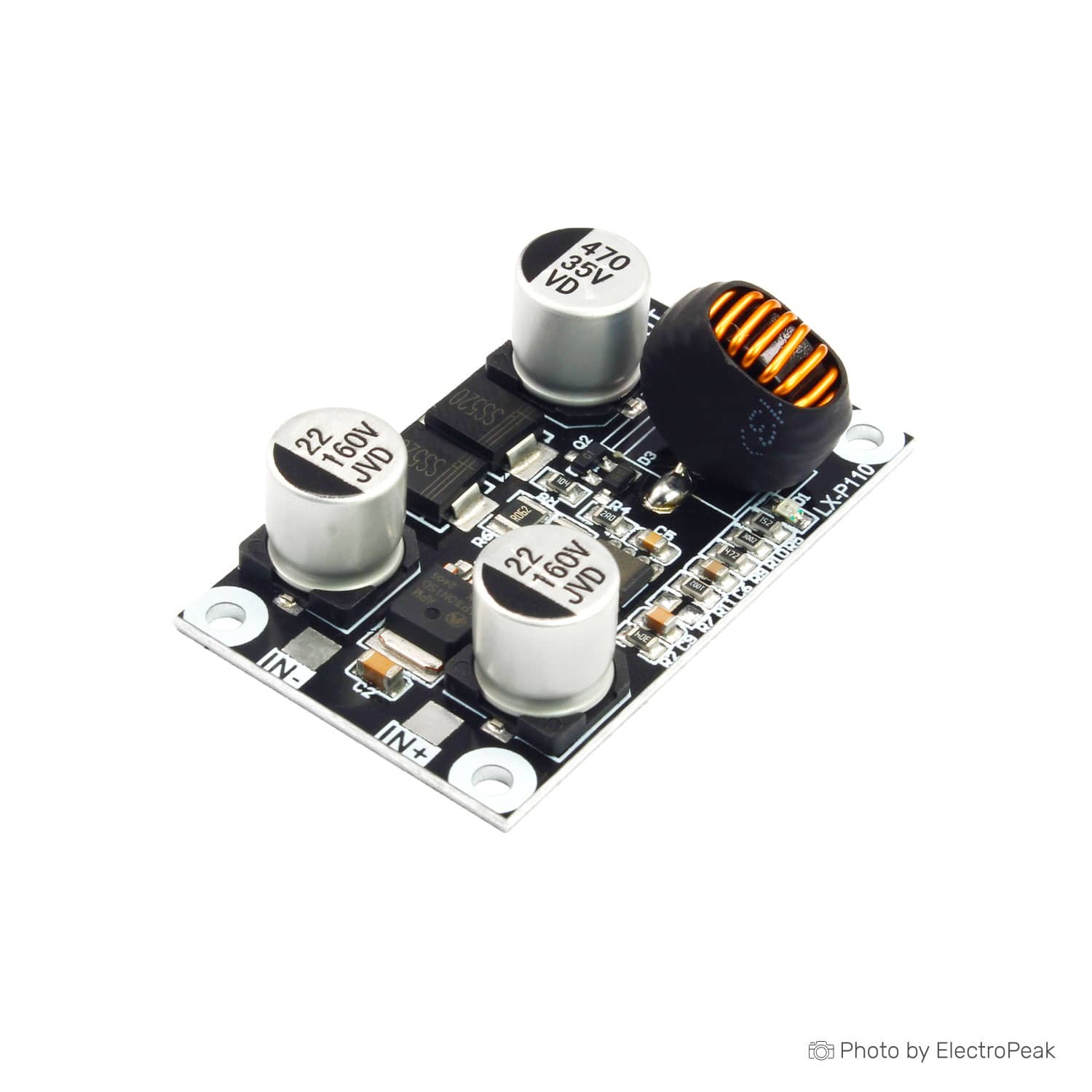

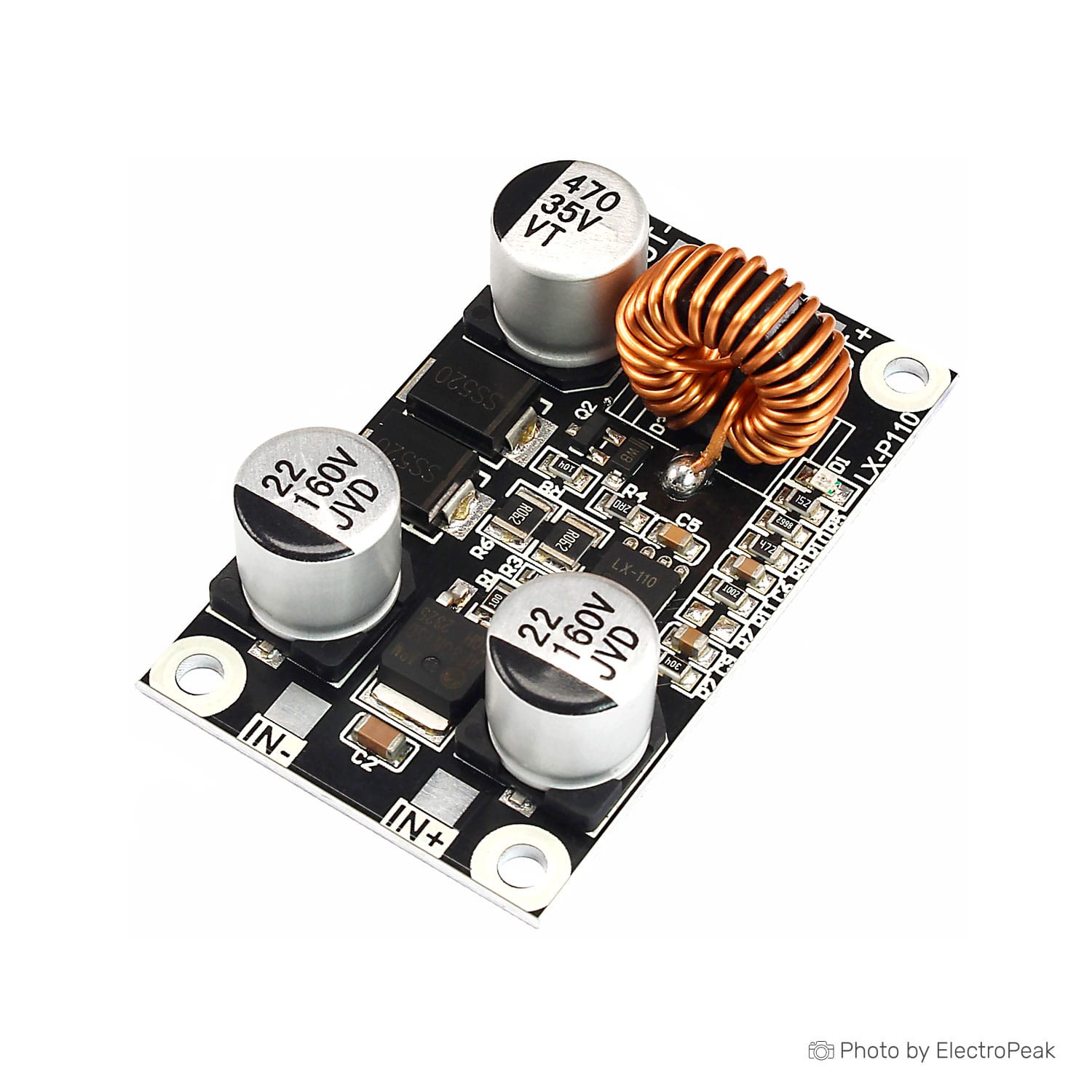

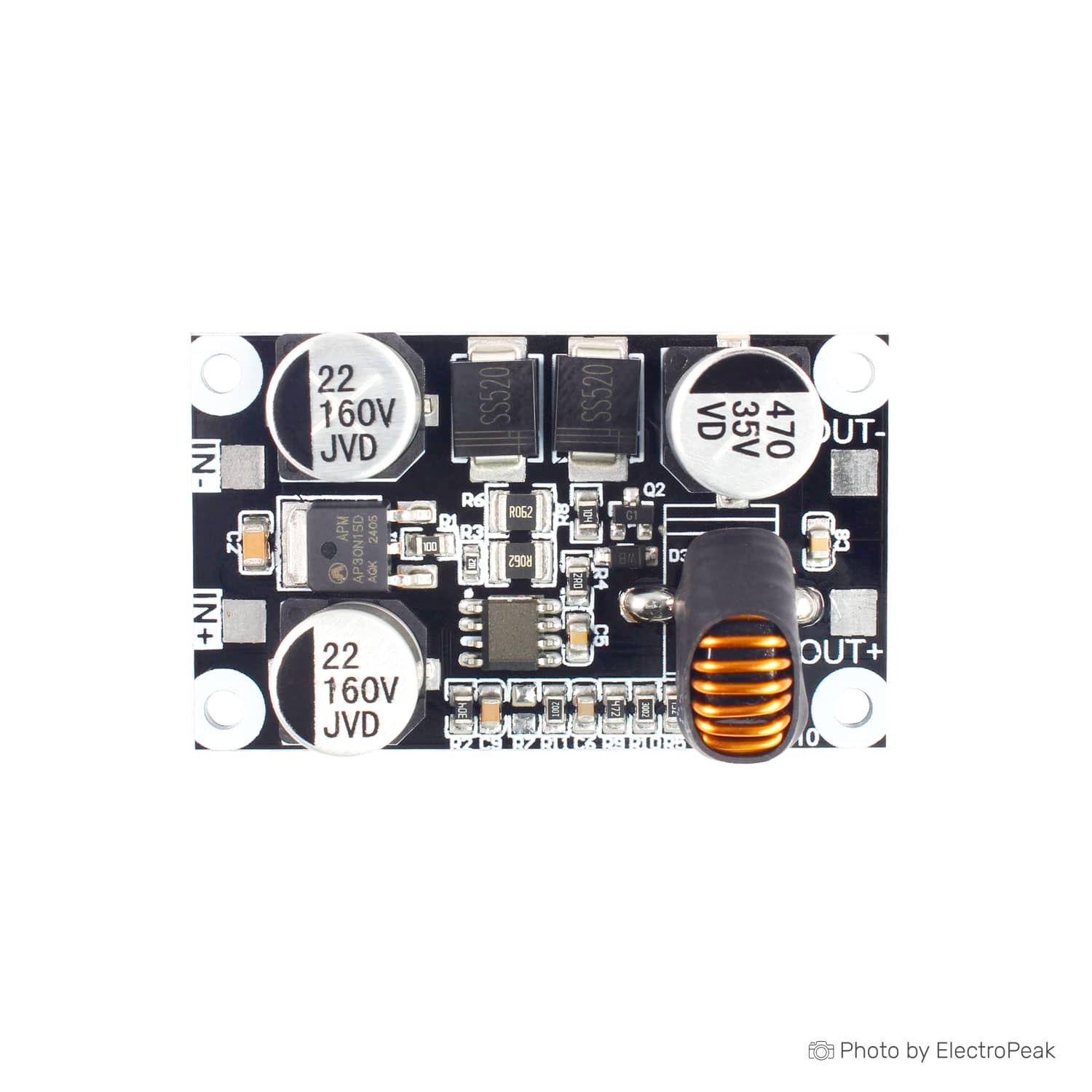

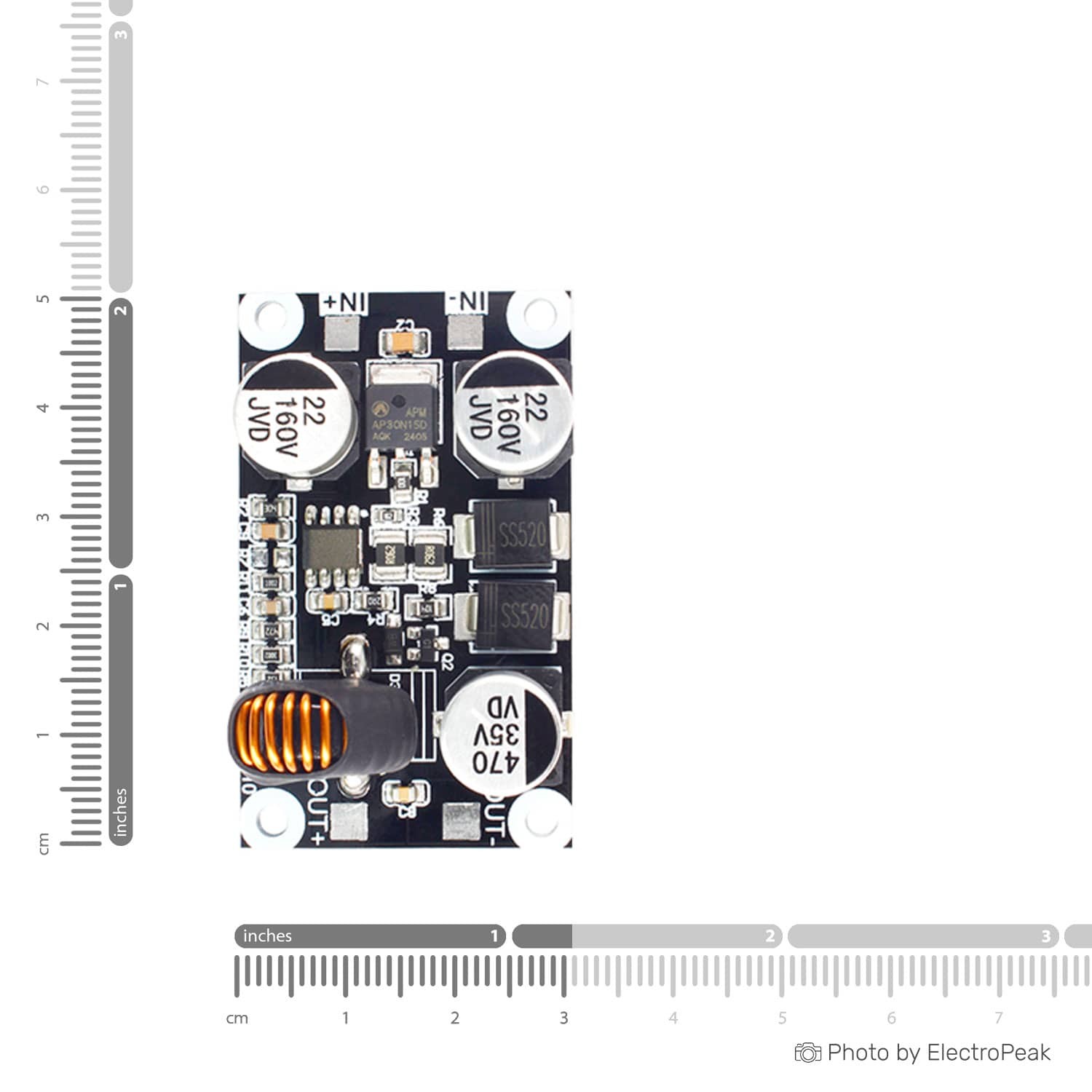

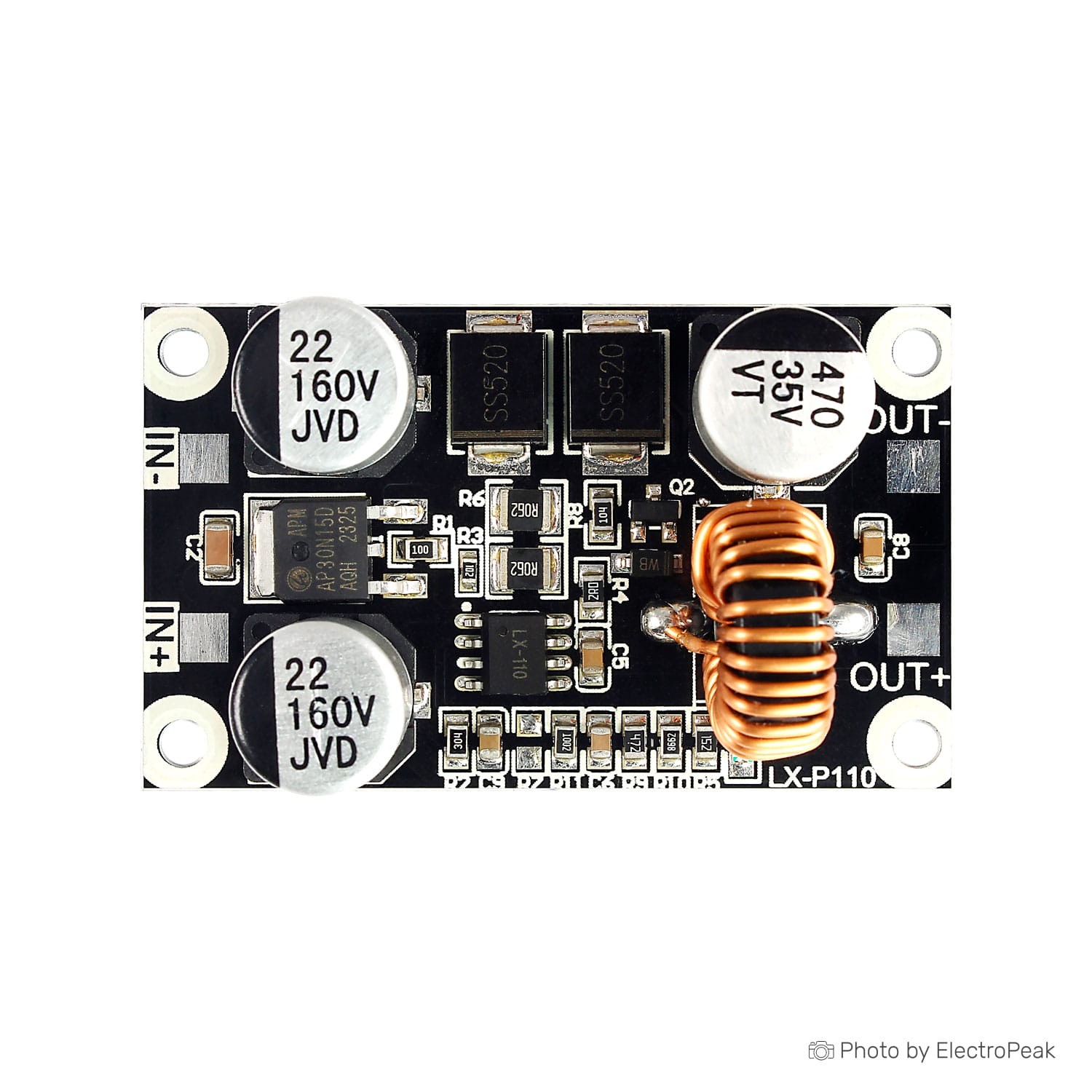

The LX-P110 DC/DC Step-Down Regulator Module - 5A is a DC to DC step-down module for electronic power regulation. It converts higher input voltages to lower output voltages for stable supply delivery. The module supports adjustable output voltage and is designed for applications that require efficient voltage reduction. It includes built-in protection features and is rated for a maximum output current of 5A. This module is suitable for electronics, robotics, and automation projects that need controlled DC power.
Features of LX-P110 DC/DC Step-Down Regulator Module - 5A
- Step-down voltage conversion
- Adjustable output voltage
- Over voltage protection
- Over current protection
- Short circuit protection
- High efficiency operation
Specifications of LX-P110 DC/DC Step-Down Regulator Module - 5A
- Input voltage range: 10-110v (for 5v model) or 15-110v (for 12v model)
- Max power output: 100w
- Max output current: 5A
- Max efficiency: 95% (As the voltage difference between input and output increases, it decreases)
- Operating temperature: -40 to 85℃
- no load output current: 5-10mA
- Over voltage protection: Yes
- Over current protection: Yes
- Short circuit protection: Yes
How to Use LX-P110 DC/DC Step-Down Regulator Module - 5A
- Connect the input supply within the supported input voltage range.
- Adjust the output voltage to the required level.
- Use the module within the rated output current and power limits.
More Info
- LX-P110 model
- DC to DC step-down regulator module
