DC-DC 12-75V to 2.5-60V Step-Down Regulator Module- 600W, 25A

[BAT-02-170]
Shop with confidence Learn More
Availability: In stock
SKU
BAT-02-170
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $9.95

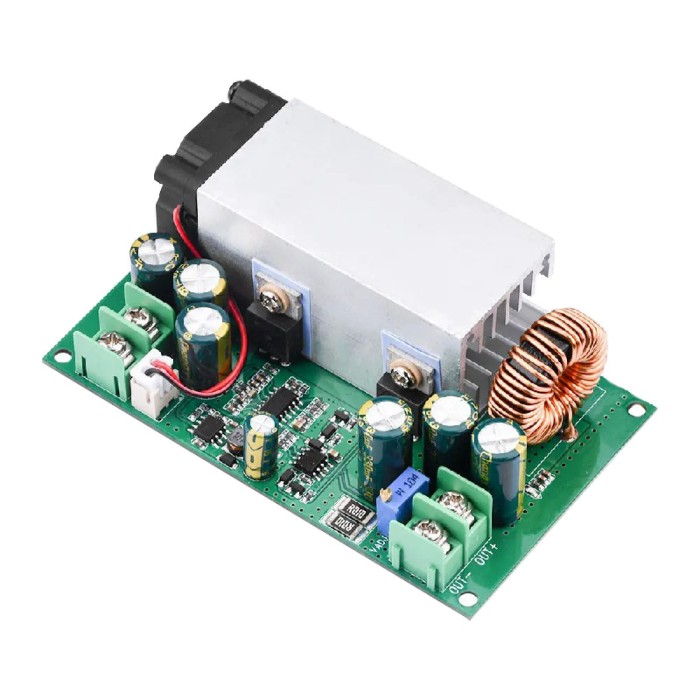

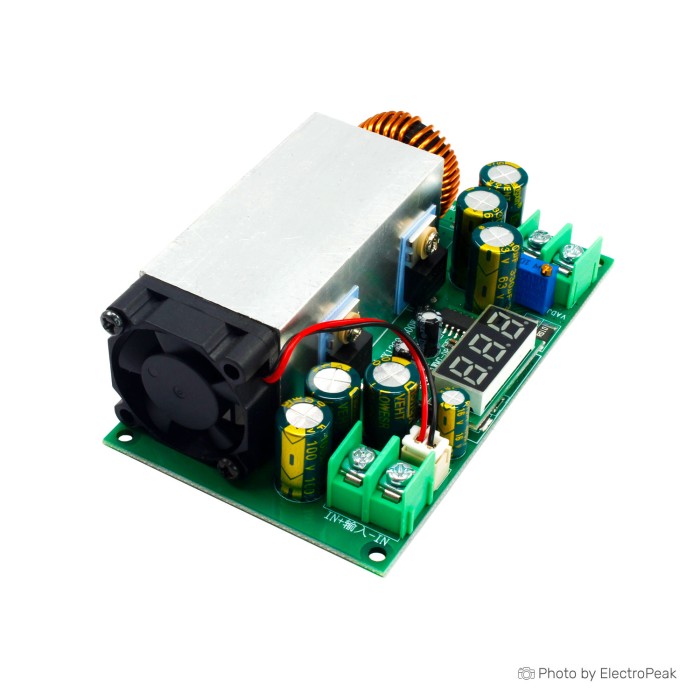

The DC-DC 12-75V to 2.5-60V Step-Down Regulator Module is a high-power buck converter capable of handling up to 600W and 25A. It is designed for applications requiring precise voltage and current regulation with high efficiency. This non-isolated buck module (BUCK) is ideal for various power supply needs, including battery charging, industrial equipment, and DIY projects.

Specifications

  • Product Model: SZ-8025CCCV
  • Module Name: 600W Step-Down Constant Voltage Constant Current Adjustable Power Module
  • Input Voltage: 12-75V
  • Output Voltage Range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)
    • Minimum Output Voltage: 2.5V
    • Maximum Output Voltage: Approximately equal to input voltage *0.8 (e.g., if input is 40V, 40V * 0.8 = 32V, so the maximum output voltage is 32V)
  • Output Constant Current: 1-25A (continuously adjustable)
  • Maximum Output Power: 600W (working environment must be well ventilated)
  • Continuous Maximum Working Power: 500W (in a ventilated environment)
  • Continuous Maximum Working Current: 25A (in a ventilated environment)
  • Heat Dissipation Method: Air-cooled heat dissipation
  • Input Undervoltage Protection: None
  • Input Overvoltage Protection: None (overvoltage prohibited)
  • Working Temperature: -10~+65°C
  • Working Frequency: 80KHz
  • Conversion Efficiency: Up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
  • Short Circuit Protection: Yes (constant current protection)
  • Input Reverse Protection: None
  • Output Anti Backflow: None (for charging batteries and connecting to inductive loads, such as motors, add anti backflow diodes)
  • Work Indicator Light: Yes (output voltage blue LED light)
  • Wiring Method: Equipped with solderless terminal blocks
  • Dimensions: 100x60x35mm

Features

  1. High Efficiency: Conversion efficiency up to 95% ensures minimal energy loss.
  2. Adjustable Voltage and Current: Precise control over output voltage and current to meet various application needs.
  3. High Power Capability: Supports up to 600W peak power and 25A continuous current.
  4. Protection Features: Includes short circuit protection with constant current protection.
  5. Indicator Light: Blue LED light indicates output voltage status.
  6. Easy Wiring: Equipped with solderless terminal blocks for easy and secure connections.
  7. Air-Cooled Heat Dissipation: Efficiently manages heat to maintain performance and longevity.

Applications

  • Battery charging
  • Industrial equipment power supply
  • DIY electronics projects
  • Any application requiring a high-power, adjustable DC power supply

Note

  • Ensure a well-ventilated environment for optimal performance and to prevent overheating.
  • Avoid overvoltage conditions to prevent damage to the module.
  • For inductive loads or charging batteries, add anti backflow diodes to protect the module.

This versatile and powerful DC-DC step-down regulator module is suitable for a wide range of applications, providing reliable and efficient power conversion with adjustable voltage and current settings.
