DC 2.8-6V 30-1500MA LED Driver PWM Control Module
$0.2400
In stock
SKU
ELC-02-108
Volume discounts:
- +100 4 % $0.2300
- +1000 8 % $0.2200
- +10000 13 % $0.2100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
COB Strip Light 12V 320LEDs/m 8mm Previous

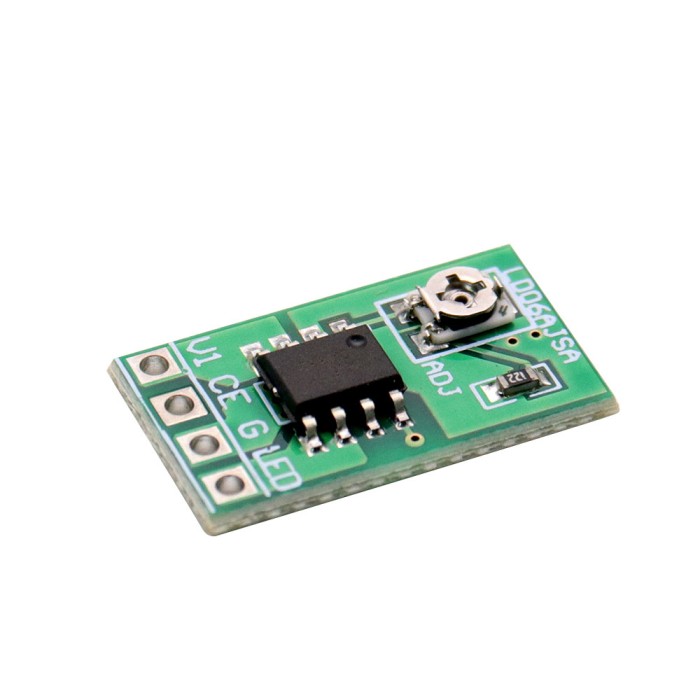

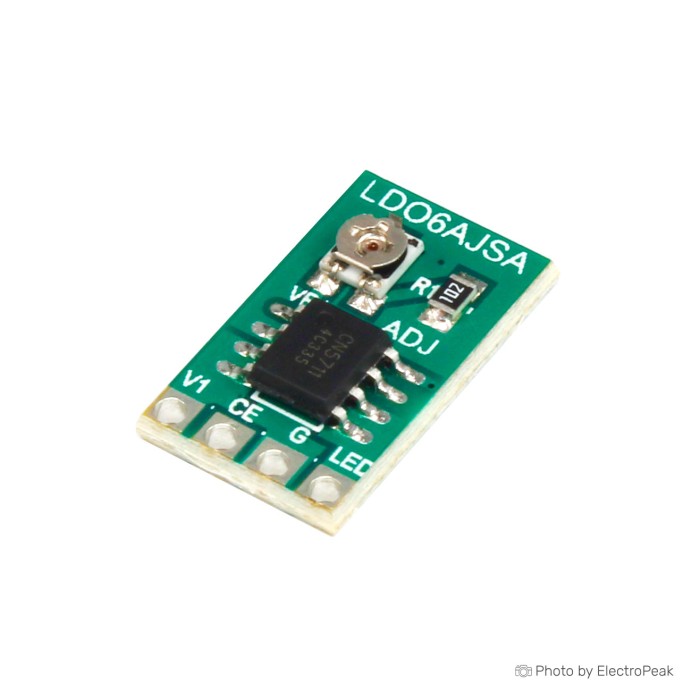

The DC 2.8-6V 30-1500MA LED Driver PWM Control Board Module is a versatile and efficient module that allows for easy control and customization of LED lighting. With its compact size and wide input voltage range, this module is suitable for a variety of LED applications, from strip lights to spotlights. It supports a maximum output current of 1500mA, providing enough power for even the brightest LEDs.
Equipped with a PWM control chip, this module offers precise and adjustable brightness levels, allowing for customized lighting effects. It also has a built-in power supply and overcurrent protection, ensuring safe and reliable performance. With its low power consumption and user-friendly design, the DC 2.8-6V 30-1500MA LED Driver PWM Control Board Module is the perfect choice for all your LED lighting projects. Upgrade your lighting setup with this top-of-the-line module today.
Specification of DC 2.8-6V 30-1500MA LED Driver PWM Control Board Module:
- Working voltage : DC 2.8-6V
- Output Current: 31-1500mA
- Maximum output power: 9W
- Can drive 1-16pcs 2.8-6V LEDs (maximum current does not exceed 1.5A)
- Perfect for 3V 3.3V 3.7V 5V 6V LED Driver)
- Current regulation: 1 through adjustable resistance; 2 through PWM control
- Chip Temperature Regulation
- Over LED Current Protection
| Interface Type | PWM |
|---|---|
| Operating Voltage (V) | 2.8-6V |
| Operating Current (mA) | 30-1500 |
| Dimensions (mm) | 20x15x5 |
| Control Type | MOSFET |
| Channel Count | 1 |
| Load Current (A) | 1.5A |
| Control Signal | PWM |
| Display Type | None |
| Input Type (AC/DC) | DC |
