DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack
$0.0630
In stock
SKU
CAB-20-015
DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack is available to buy in increments of 20
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DC-005 5.5mmx2.5mm PCB Mount DC Power Jack Previous

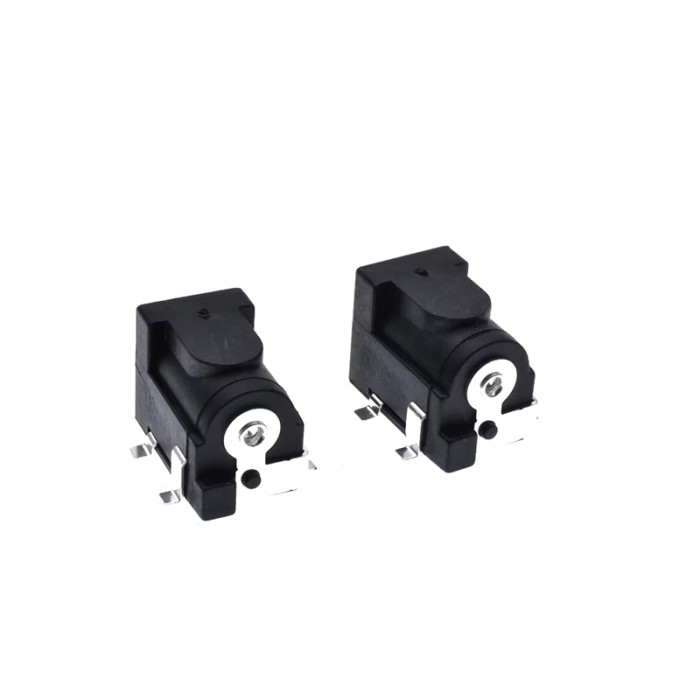

The DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack is a compact DC connector for PCB-mounted power input. It is designed for surface-mount layouts and provides a single DC outlet for electronic devices and circuits. The jack supports low-power applications with a maximum input current of 1A or less. It accepts standard 5.5x2.1mm DC plugs and is suitable for space-constrained PCB designs. The body uses high-quality plastic and metal contacts for the connection interface.
Features of DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack
- PCB mount design
- SMD/SMT mounting style
- Single DC outlet
- Maximum input current of 1A or less
- Compatible with 5.5x2.1mm plugs
- Black housing
- Four solder tabs
Specifications of DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack
- Application Type: Power Source
- Plug Type: DC Jack
- Output Type: DC
- Maximum Input Current: 1 A or Less
- Colour: Black
- Termination Type: Solder Tabs X 4
- Compatible Mounting Style: SMD/SMT SOLDER PCB
- Number of Outlets: 1
- Plug Size: 5.5x2.1mm
- Maximum Compatible Appliance Wattage: 0-30W
- Input Voltage: 0-30VDC
- Material: High-quality plastic and metal contacts
How to Use DC-050 5.5x2.1mm PCB Mount SMD DC Power Jack
- Place the jack on the PCB footprint.
- Solder the four tabs to secure the connection.
- Connect a compatible 5.5x2.1mm DC plug.
More Info
- Surface-mount connector for PCB power input.
- Designed for DC power connections in electronic circuits.
